Effectivity: 912 i Series BRP-Powertrain page 1-13
OM Edition 1/Rev. 0 January 01/2012
d05694.fm

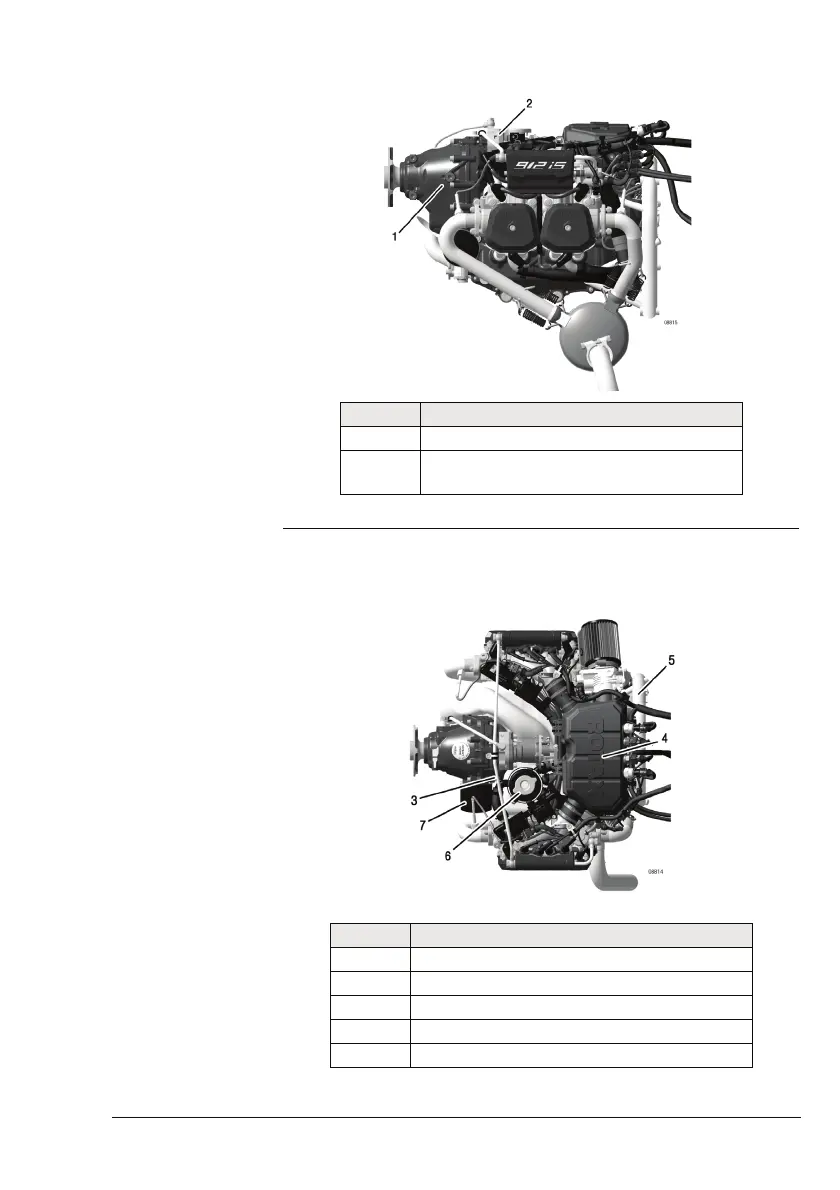

1.8) Engine components, engine views, cylinder designation
Side view
Fig. 2
Top view
Fig. 3
Part Function
1 Propeller gear box
2 Vacuum pump or hydraulic governor for con-
stant speed propeller
Part Function
3 Engine serial number
4Airbox
5 Electric starter
6 Expansion tank with excess pressure valve
7 Oil filter
Cyl. 3
Cyl. 1
Cyl. 2
Cyl. 4
magneto side
power take of side
