Rotax 912 i series Operator's Manual

Effectivity: 912 i Series BRP-Powertrain page 2-7
OM Edition 1/Rev. 0 January 01/2012
d05695.fm
Oil viscosity Use of multi-grade oils is recommended.
NOTE: Multi-viscosity grade oils are less sensitive to
temperature variations than single grade oils.
They are suitable for use throughout the sea-
sons, ensure rapid lubrication of all engine com-
ponents at cold start and get less fluid at higher
temperatures.

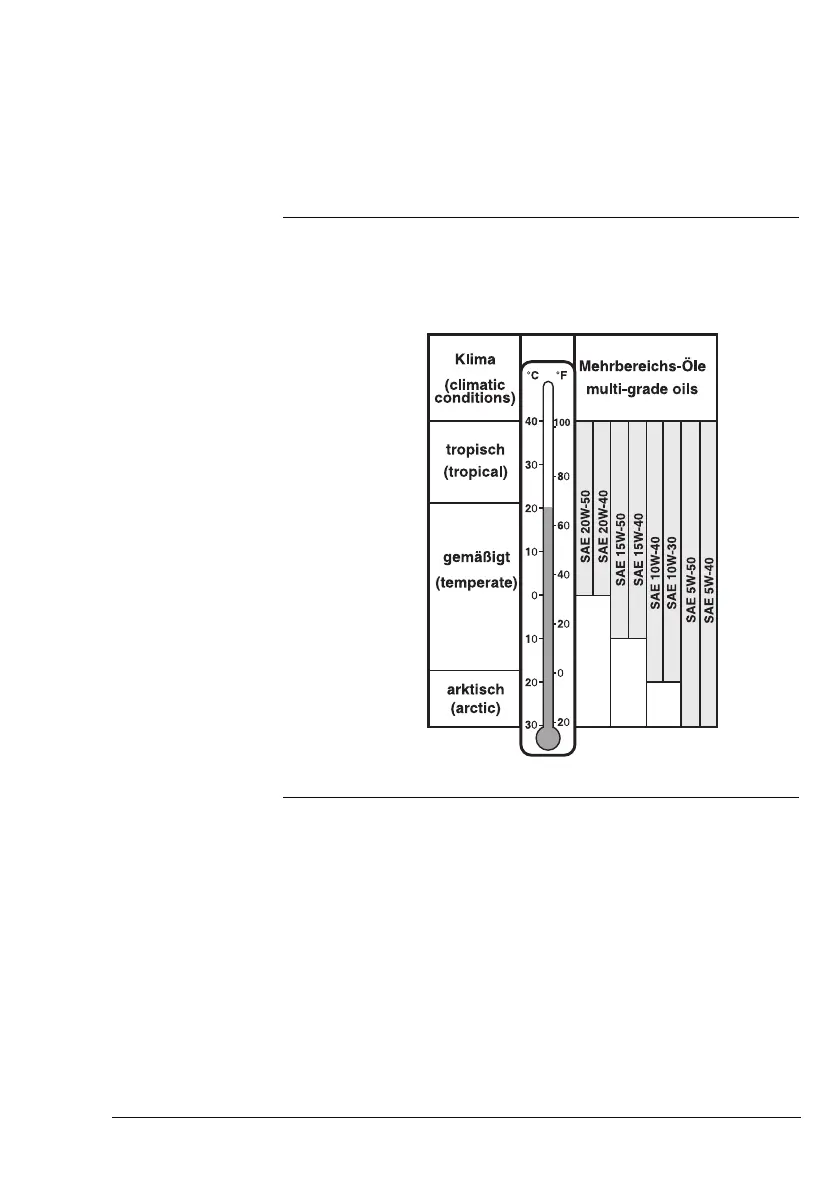

Table of lubricants See Fig. 1.
Since the temperature range of neighboring SAE grades overlap,
there is no need for change of oil viscosity at short duration of am-
bient temperature fluctuations.
Fig. 1
06317

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
