INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
73-00-00
page 26
August 01/2012
Graphic

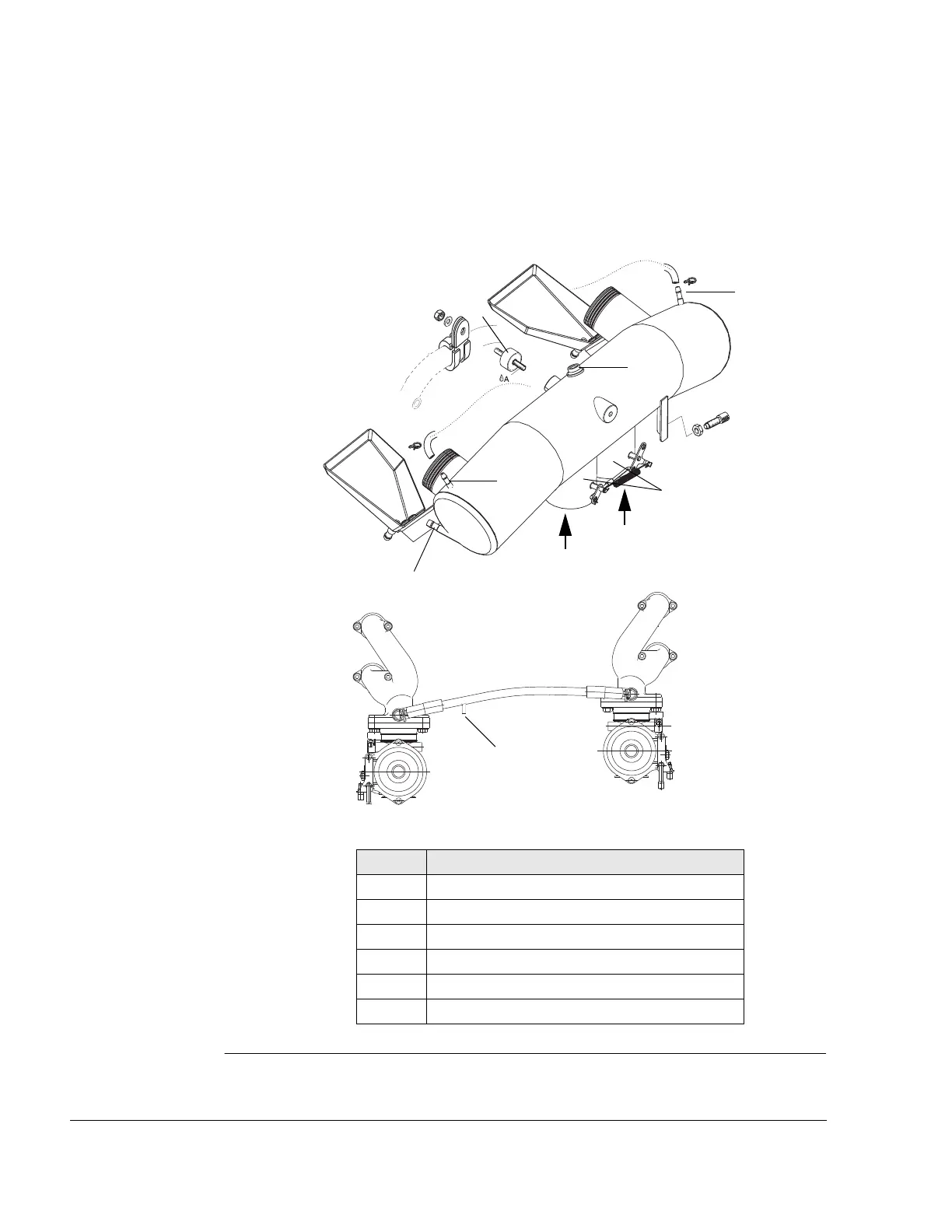

Air intake system
NOTE: Make sure that the air intake tubes of the airbox for fresh
air and preheated air are connected correctly,
Fig. shows the GENUINE-ROTAX airbox.
Fig. 12 08645,02051
Part Function
1 Air intake socket
2 Connecting nipple of drainage line
3 Connection for manifold pressure
4 Connection for temperature sensor
5 Connection for float chamber venting lines
6 Rubber puffer
3
5
4
5
6
2
Cold
(Fresh air)
Warm
(Preheated air)
1
