d04920.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
24-00-00
page 5
August 01/2012
2) Technical data and connection of the electric components
2.1) Internal generator
General note NOTE: Approx. 250 W AC output at 5800 rpm. For DC output in
connection with rectifier-regulator. See chap. 24-00-00 sec-
tion: 3).
Connection See Fig. 1.
Feeding wires (1) from the generator to rectifier-regulator on left side of
ignition housing.
- 2 flexible cables, 1.5 mm
2
yellow (in shielding metal braid)
- length approx. 660 mm (26 in.) starting from ignition housing
- with on each plug socket 6.3 x 0.8 to DIN 46247

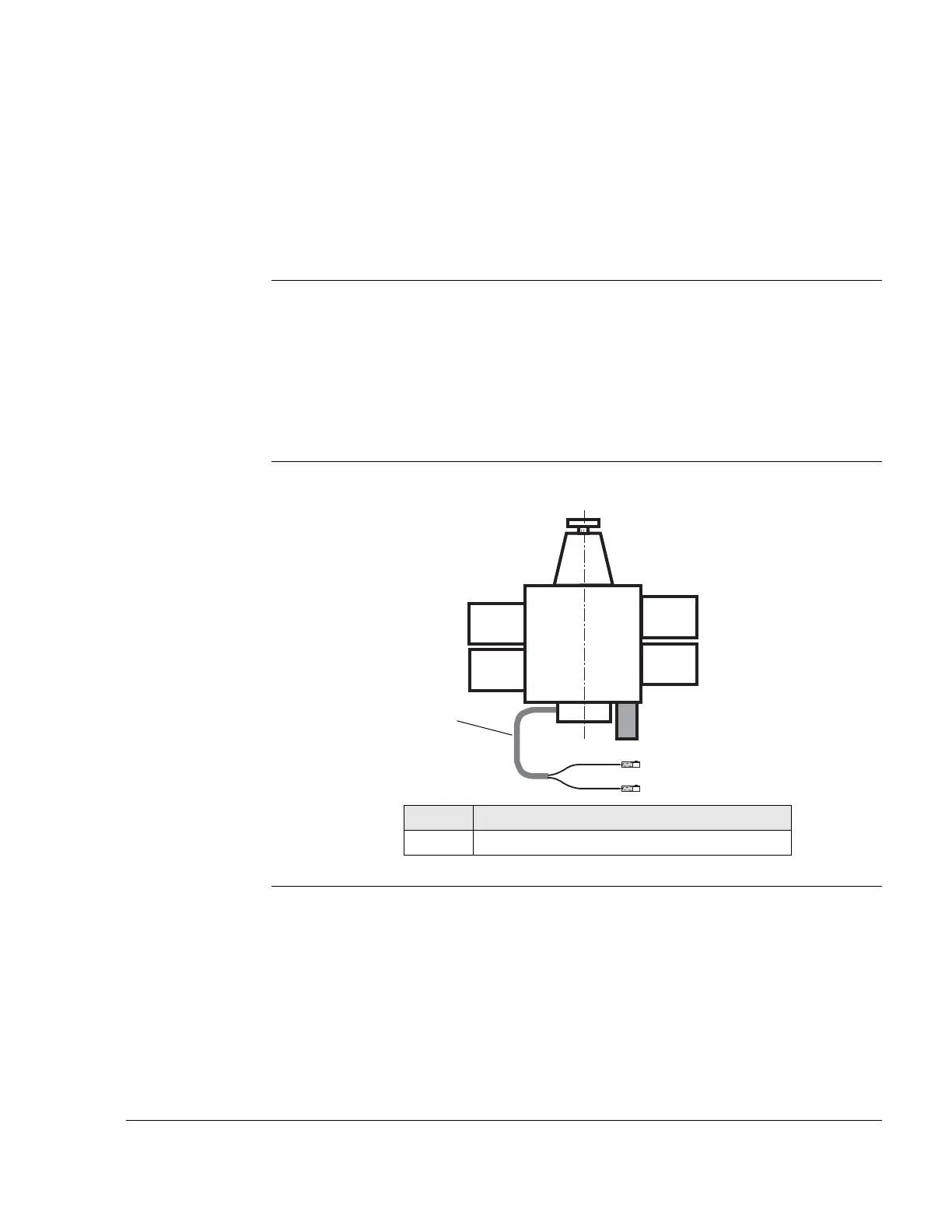

Graphic Connection
Fig. 1 02498
Part Function
1 Feeding wires (yellow)
ge
ge
Cyl. 1
Cyl. 3
Cyl. 2
Cyl. 4
