2.2) Oil tank
Connection See Fig. 9 and Fig. 10.
NOTE: Optional extra:
Nipple either straight or with 90° elbow. Metric M18x1.5 or
UNF 3/4-16 thread

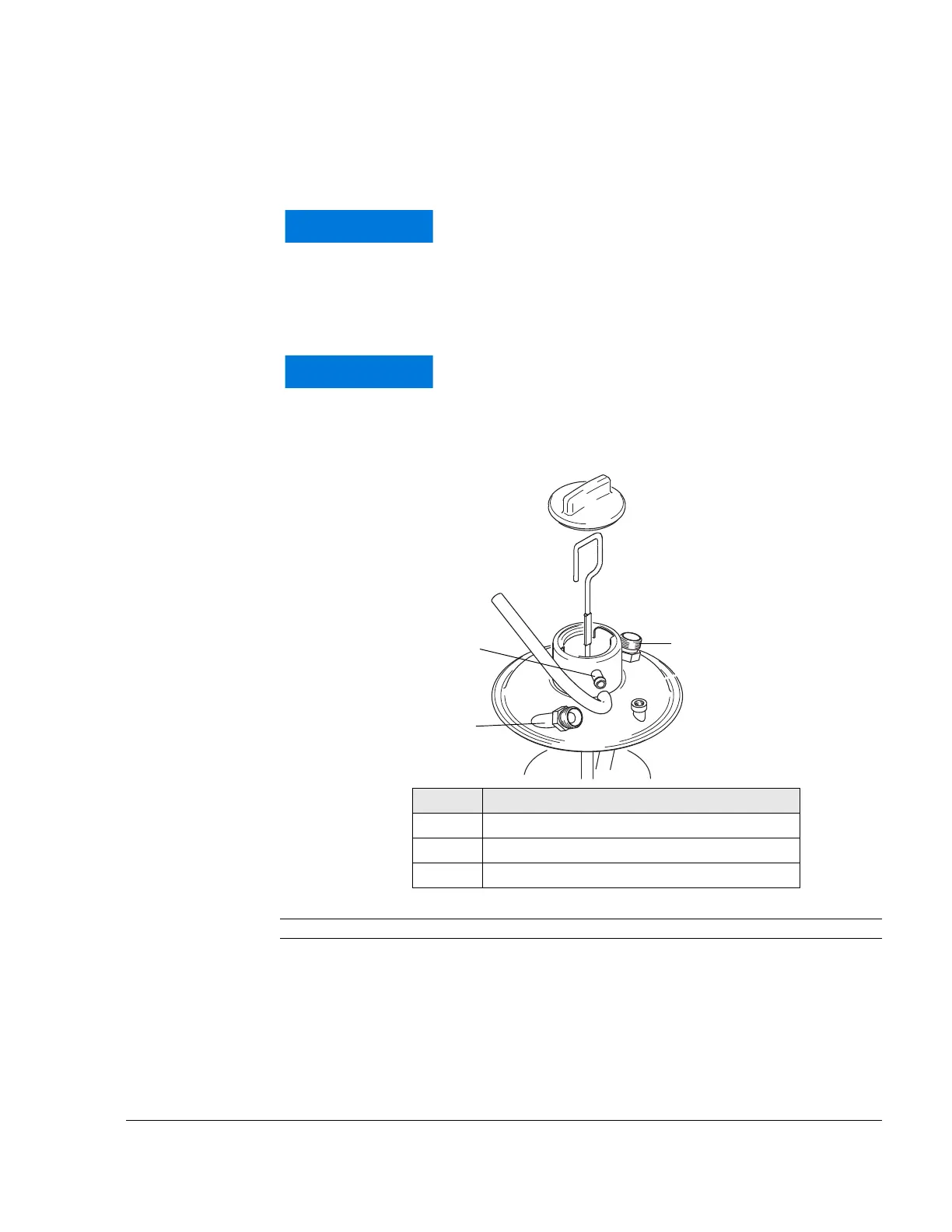

Connections for oil circuit (engine)
Graphic
Fig. 9 08246
Only use the oil tank provided in the scope of delivery,
as its design has changed compared with older tanks.
Check what type of thread or connection there is on
the supplied oil tank.
Part Function
1 Oil feed line
2 Oil outlet
3 Purging nipple
