d04923.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
73-00-00
page 17
August 01/2012

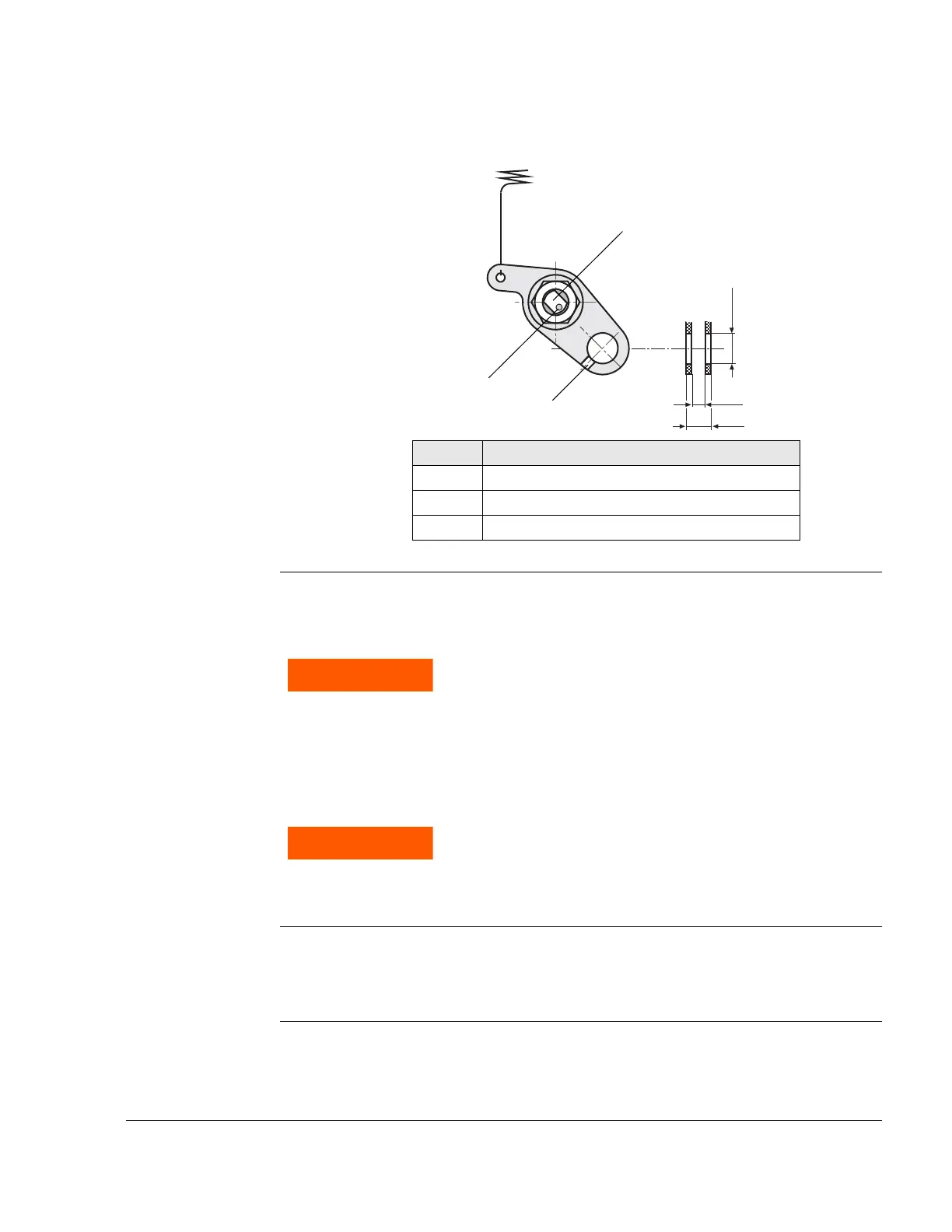

Graphic
Choke actuation
Fig. 9 00541
2.3) Requirements on cable actuation
General note See Fig. 10.
Bowden cable The two throttles have to be controlled by two separate Bowden cables
working synchronously.
Adjust the cables to a free travel of 1 mm (.04 in.).
Part Function
1 Choke shaft
2Marking
3 Cable engagement
5,2
2,2
ø6,7
1
3
2
WARNUNG
WARNING
Non-compliance can result in serious injuries or death!
With throttle lever not connected the throttle valve will
remain fully open.
The starting position of the throttle valve is there-
fore full throttle!
Therefore never start the engine without connecting
the throttle lever first.
WARNUNG
WARNING
Non-compliance can result in serious injuries or death!
The cable actuations being used must not be affected
at all by vibrations emanating from the engine or the
airframe.
