d04924.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
75-00-00
page 17
August 01/2012
Graphic

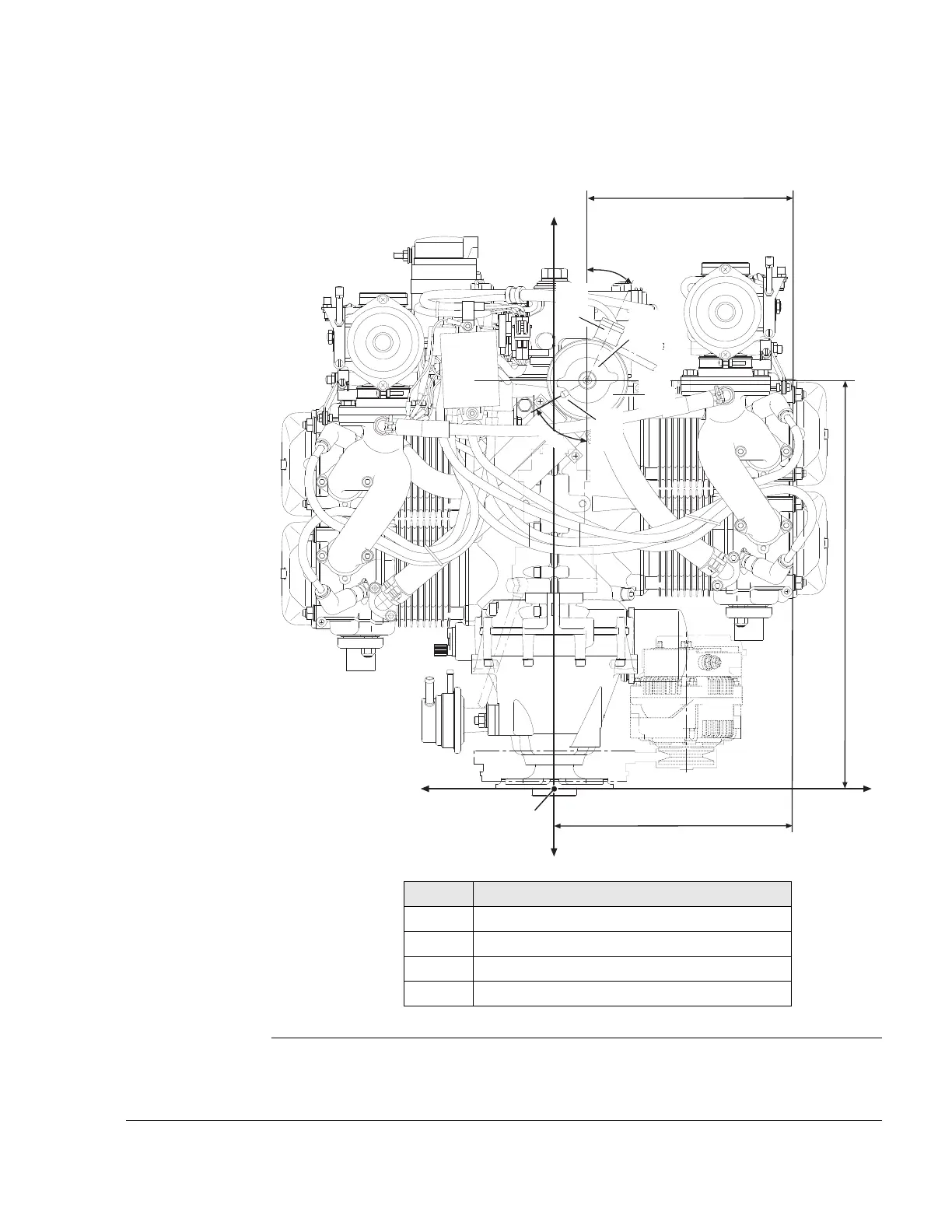

Connecting dimension
Fig. 7 07136
Part Function
1 Expansion tank
2 Radiator cap
3 Connection to the radiator
4 Connection to the overflow bottle
-x
+x
-y
+y
P
200± 10 mm
427 ± 10 mm
252± 5 mm
27°
60°±3°
3
2
1
4
