Rotax OM-912 Installation Manual

d04927.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
79-00-00
page 25
August 01/2012
Graphic

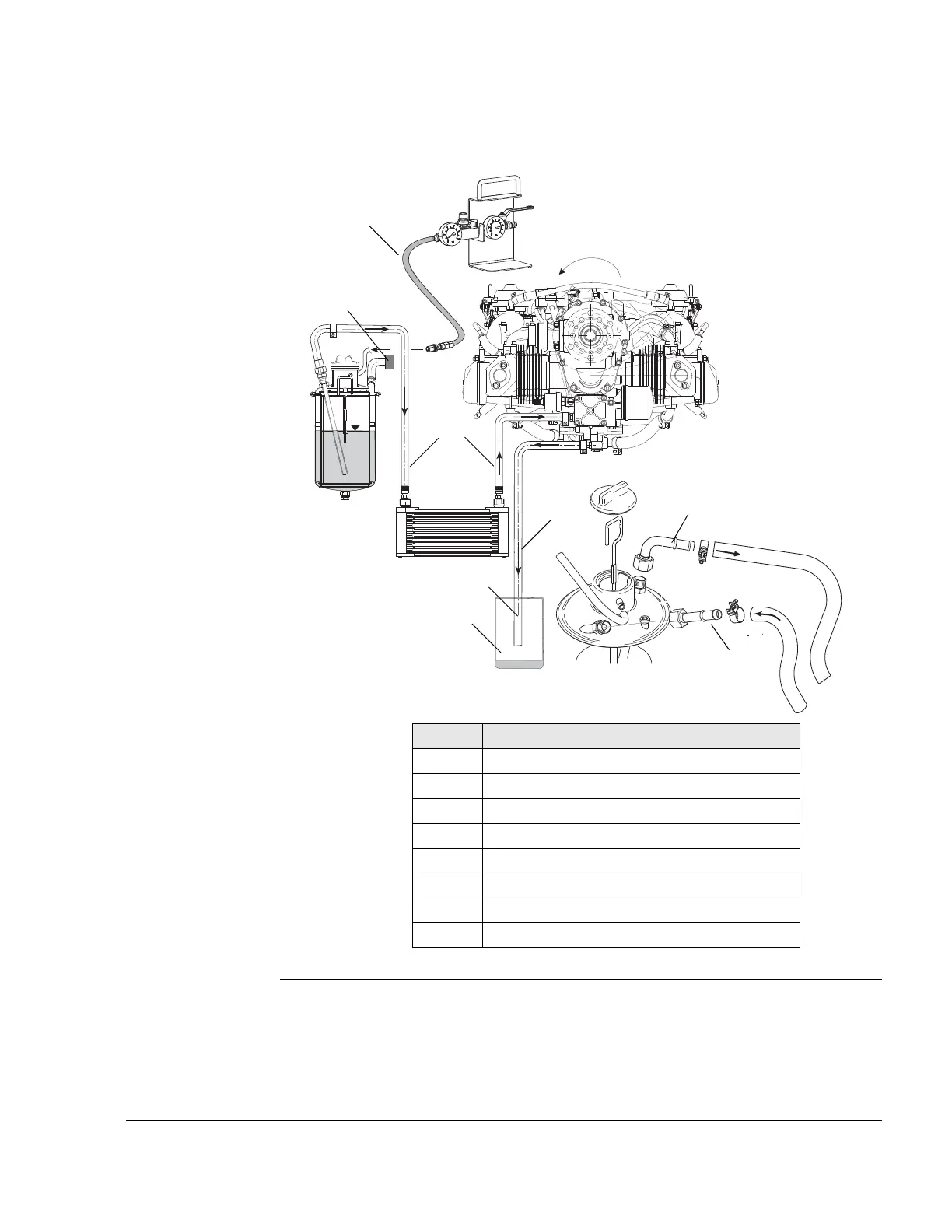

Lubrication system.
Fig. 12 09163,05448
Part Function
1 Suction line
2 Oil return line
3 Free end
4 Tank
5Plug
6 Purging connection
7 To oil pump
8 Return from engine
IN
O
U
T
7
8
Direction of rotation of engine
Pressure....max. 1 bar
(14.5 psi)
Relevant Plug
6
5
1
2
4
3
