d04921.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
61-00-00
page 6
August 01/2012
Connections

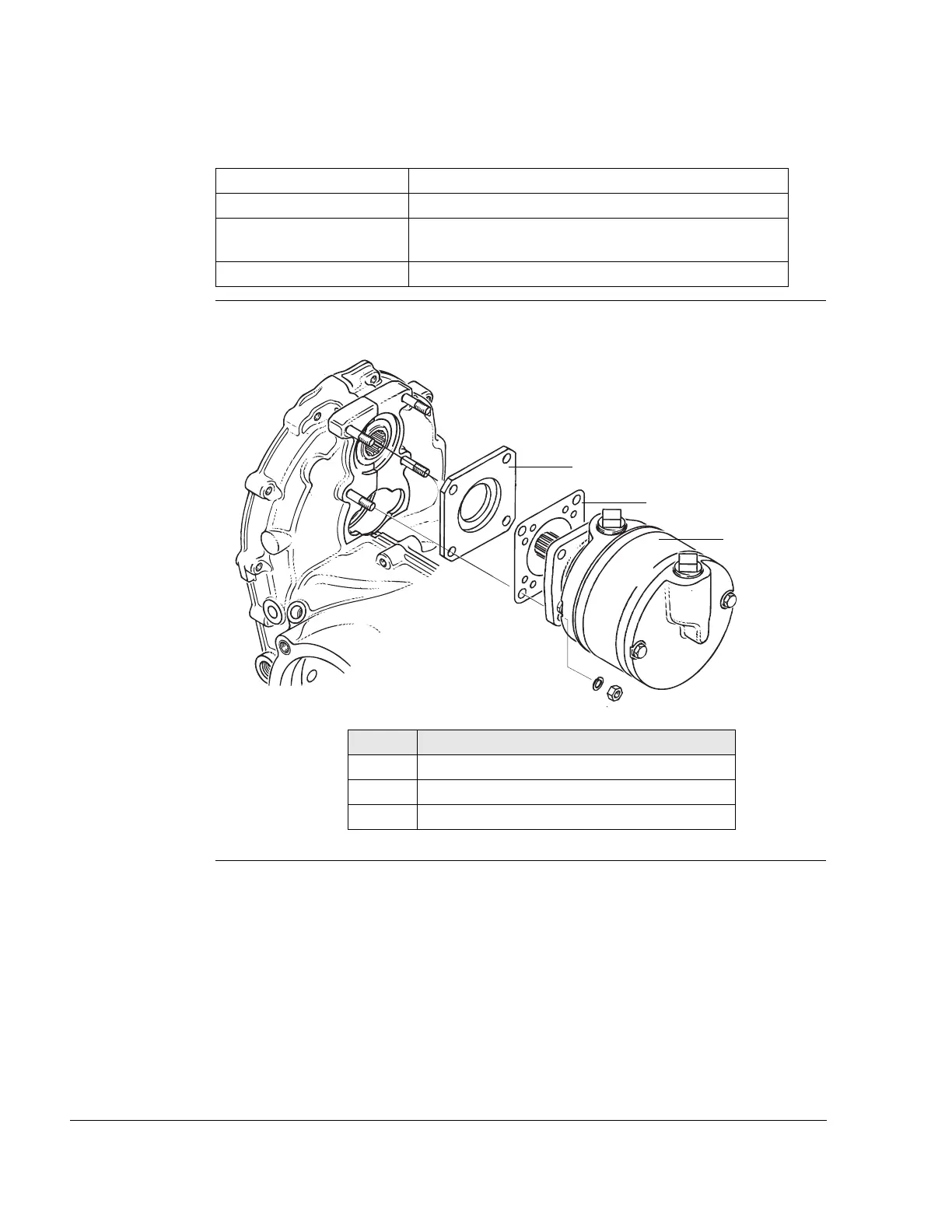

Graphic Vacuum pump
Fig. 4 08328
Thread size M6
Effective thread length Max. 17 mm (9/16“)
Governor drive Internal spline 20/40 SMS 1834 NA
14x1.27x30x12
Power consumption Max. 600 W
Part Function
1 Vacuum pump
2 Attachment flange
3 Gasket
1
2
3
