Rotax OM-912 Installation Manual

d04923.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
73-00-00
page 4
August 01/2012

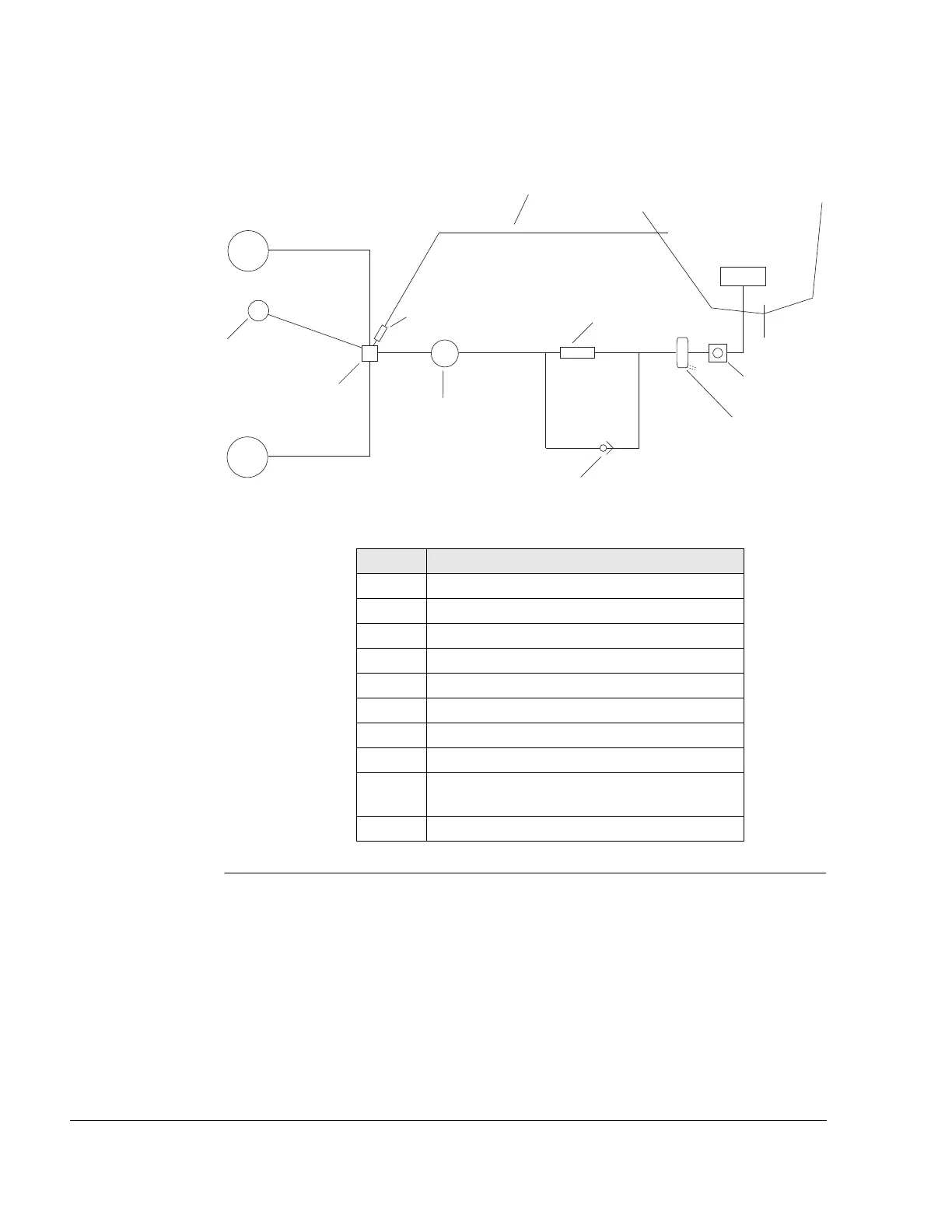

Graphic
Fuel system
Fig. 2
07306
Part Function
1 Fuel tank
2 Coarse filter
3 Fire cock
4 Fine filter/water trap
5 Mechanical fuel pump*
6 Fuel pressure control*
7 Electrical fuel pump
8 1x check valve
9 Return line from tank to engine (with integrat-
ed adapter sleeve)
* Standard version
fuel tank
drain
valve
1
restrictor jet
carburetor
carburetor
3
8
7
9
6
5
2
4
mechanical fuel
pump
return line to tank
fuel pressure
gauge
