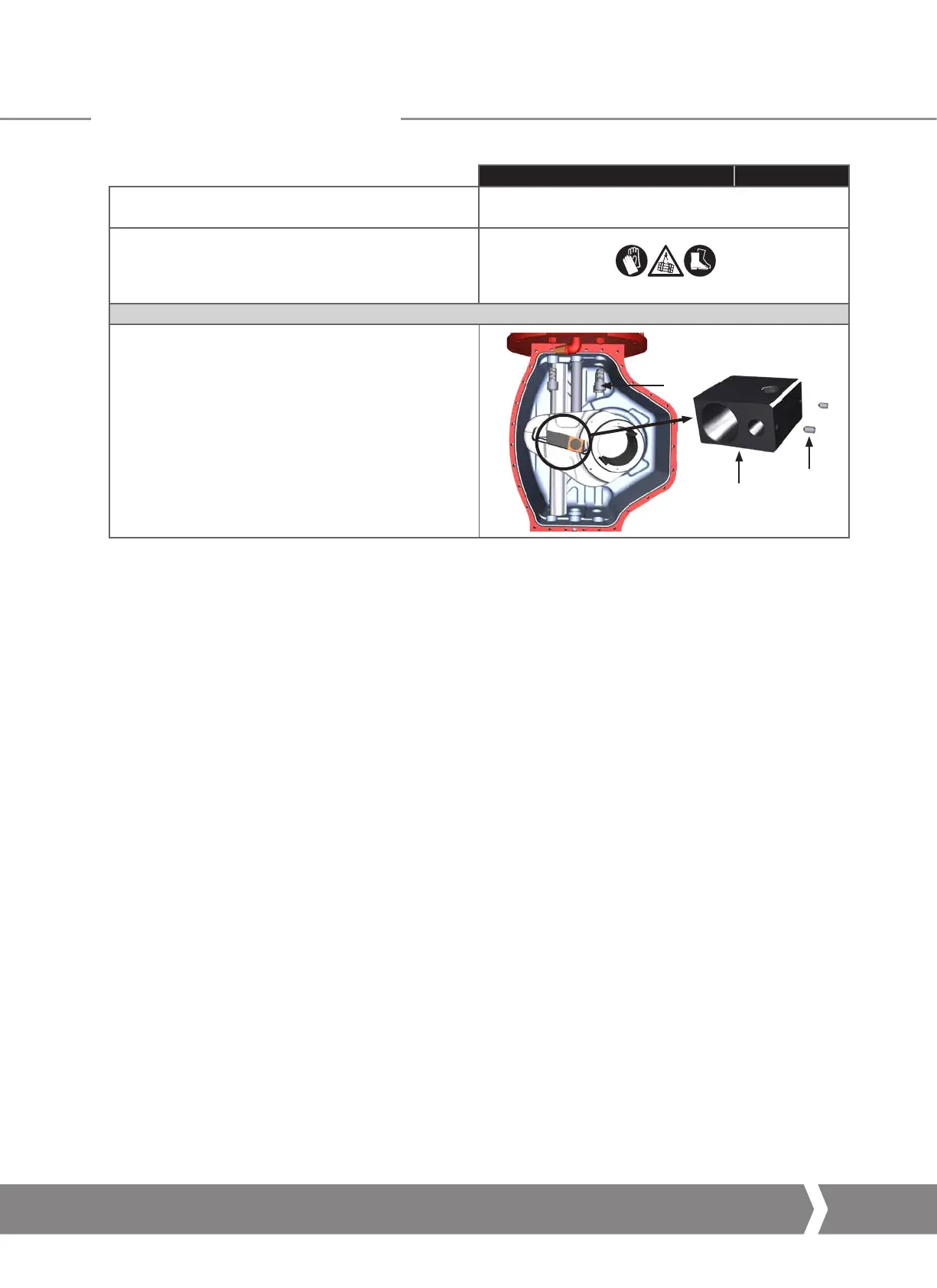

PM-GP-006 Page: 14/17
Component: Single-Acting actuator / Double-Acting actuator Task: Pneumatic cylinder and centre body seals replacement
Equipment, Tools, Materials:
Spare seals
Wrench
Lifting tools
Project documentation
Warnings:
Preliminary Operations: Removal from Valve
67. Rotate the cylinder clockwise to screw piston rod (23) into
guide block (14)
68. Lock with set screw (16) within the guide block (14)
69. Apply a film of Loctite 243 on bolts (24) and tighten following a
cross-bolt tightening sequence to the recommended torque
14
16
24
