Installation, Commissioning and Maintenance Manual
64
17.0 Part List
Centre body (Cast iron) Size 085

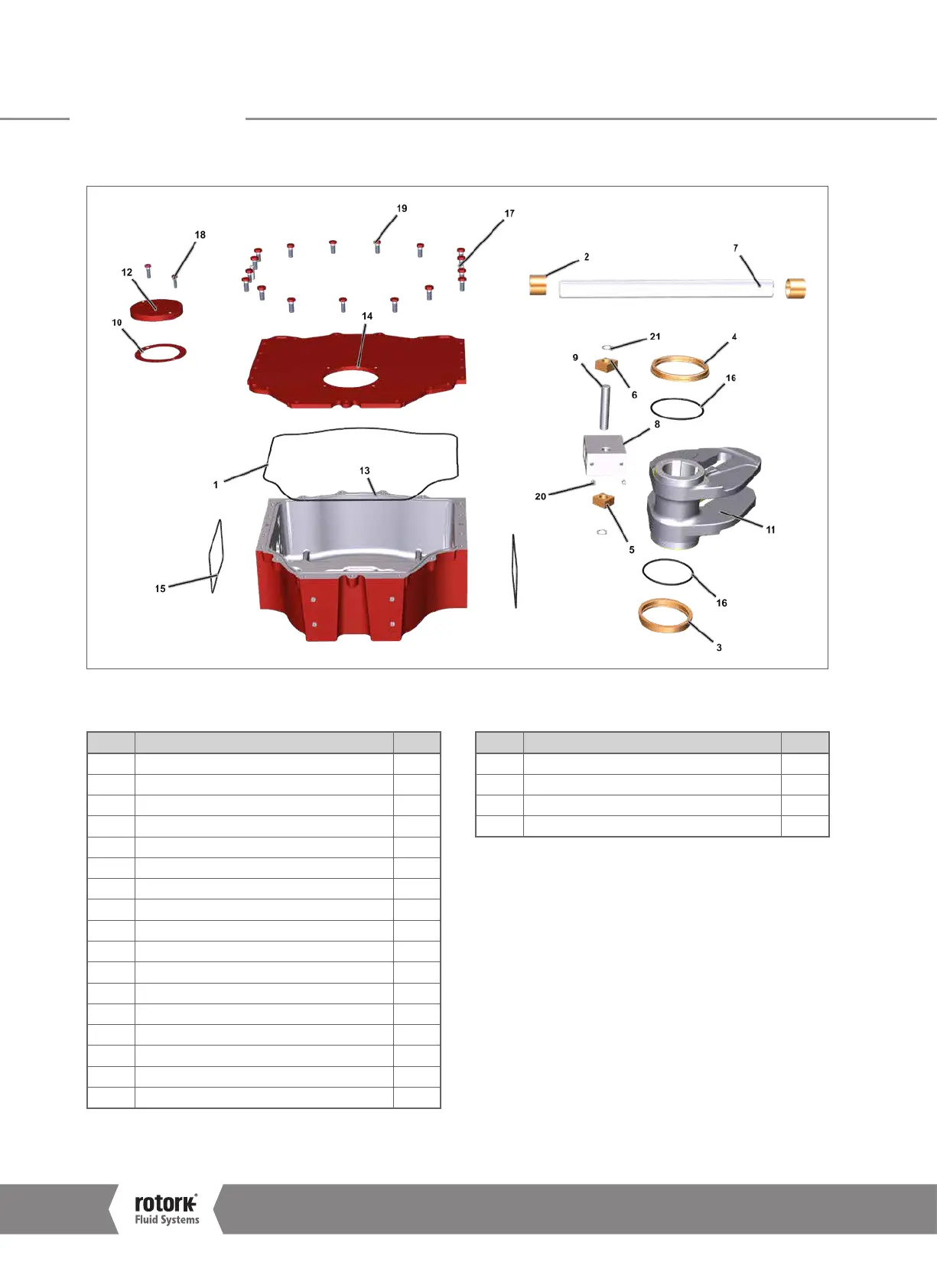

Fig 17.1 Centre body (Cast iron) (Actuator size 085)
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
1 O-ring
1 18 Screw 2
2 Guide bar bushing 2 19 Screw 17
3 Yoke bushing 1 20 Set screw 2
4 Yoke bushing 1 21 Circlip 2
5 Sliding block 1
6 Sliding block 1
7 Guide bar 1
8 Guide block 1
9 Yoke pin 1
10 Position indicator gasket
1
11 Scotch yoke 1
12 Position indicator 1
13 Housing 1
14 Cover 1
15 O-ring
2
16 O-ring
2
17 Parallel pin 2
Recommended spare part
