Keeping the World Flowing
65
17.0 Part List
Centre body (Cast iron) Size 130

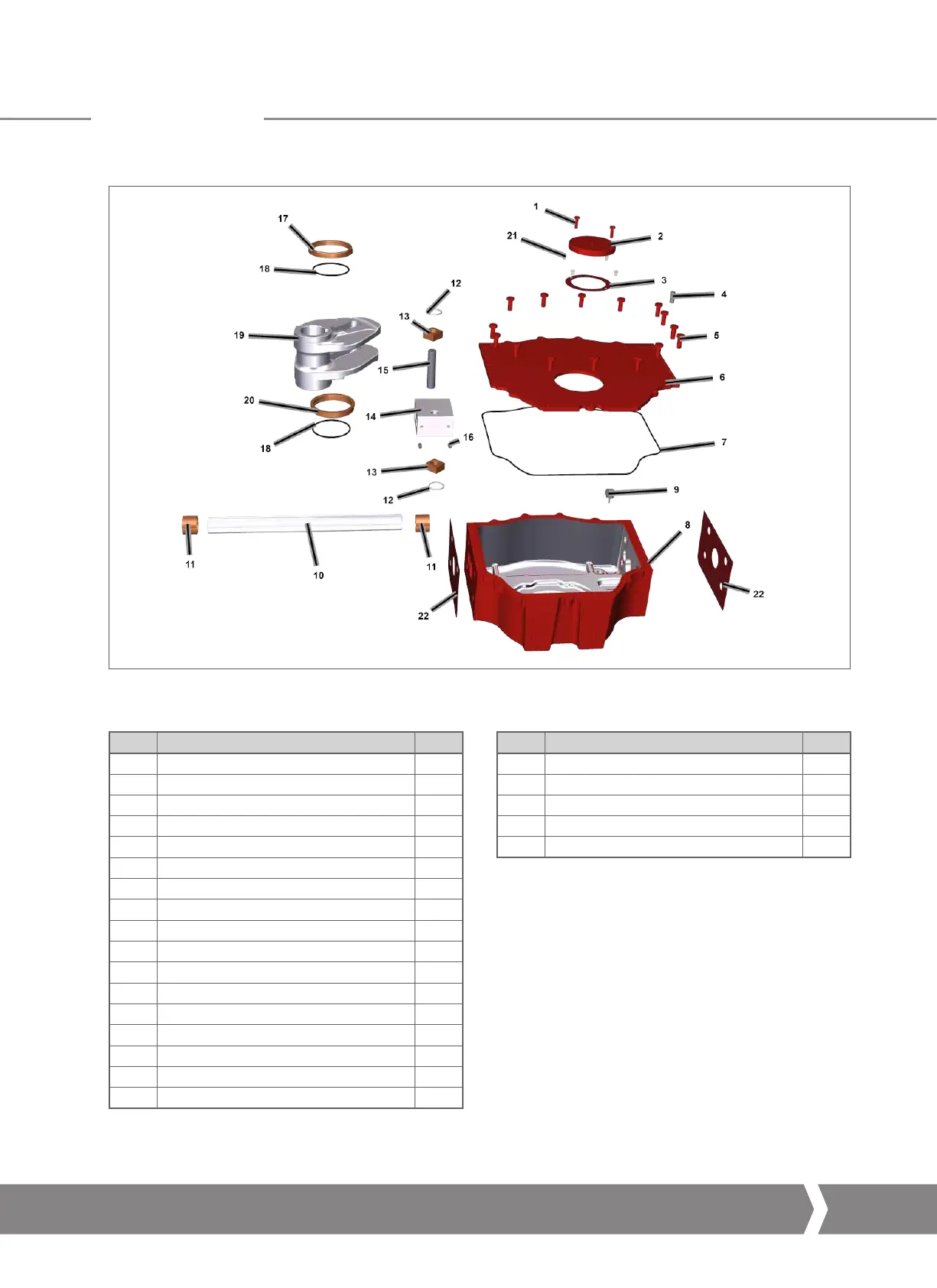

Fig 17.2 Centre body (Cast iron) (Actuator size 130)
ITEM DESCRIPTION QTY ITEM DESCRIPTION QTY
1 Screw 2 18 O-ring
2
2 Position indicator 1 19 Scotch yoke 1
3 Position indicator gasket
1 20 Lower bushing 1
4 Parallel pin 2 21 Screw 4
5 Screw 15 22 Gasket
2
6 Cover 1
7 O-ring
1
8 Housing 1
9 Safety valve 1
10 Guide bar 1
11 Guide bar bushing 2
12 Retaining ring 2
13 Sliding block 2
14 Guide block 1
15 Yoke pin 1
16 Set screw 2
17 Upper bushing 1
Recommended spare part
A4 US
US
A4
US
A4
A4 US
