PM-GP-007 Page: 9/9
Component: Single-Acting actuator / Double-Acting actuator Task: Hydraulic Cylinder for manual override seals replacement
Equipment, Tools, Materials:
Spare seals
Wrench
Lifting tools
Project documentation
Warnings:
Preliminary Operations: Removal from Valve

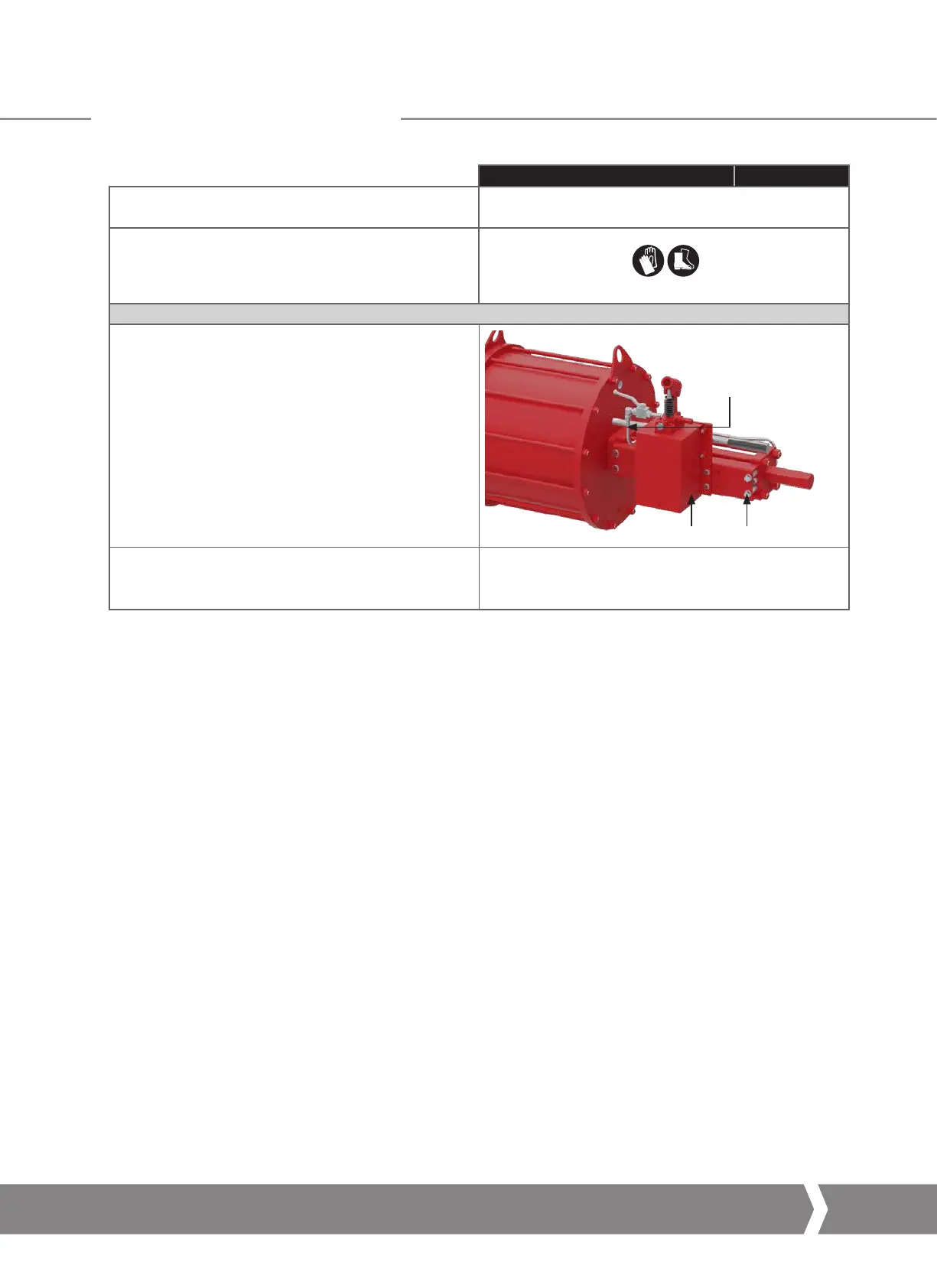

41. Assemble hydraulic pump (3) with its support and tighten
bolts (S)
42. Install pipe (P)
S3
P
43. Use the hand pump to cycle the actuator and check the
absence of leakages
44. Check painted parts and if necessary paint according
painting cycle
16.0 Periodic Maintenance
A4 US
US
A4
US
A4
A4 US
