Installation, Commissioning and Maintenance Manual
62
PM-GP-007 Page: 8/9
Component: Single-Acting actuator / Double-Acting actuator Task: Hydraulic Cylinder for manual override seals replacement
Equipment, Tools, Materials:
Spare seals
Wrench
Lifting tools
Project documentation
Warnings:
Preliminary Operations: Removal from Valve

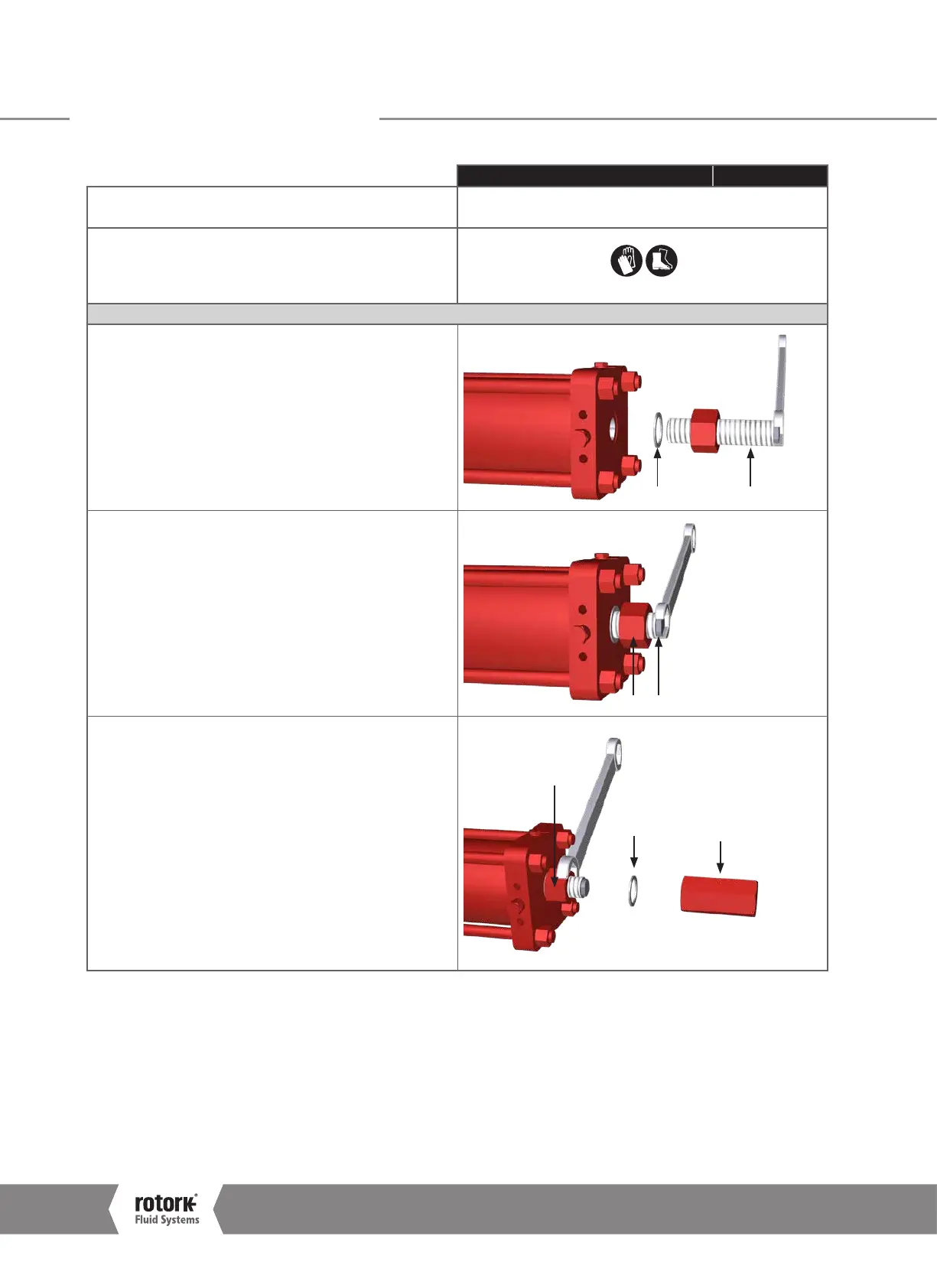

38. Assemble seal washer (2) in its correct position and stop bolt (3)
to length W
32
39. Hold stop bolt with a wrench and tighten stop nut (4)
4 3
40. Hold stop nut (4) install seal washer (2) in its correct position
and tighten cap nut (1)
1
2
4
