rotork gp series User Manual

Keeping the World Flowing
61
PM-GP-007 Page: 7/9

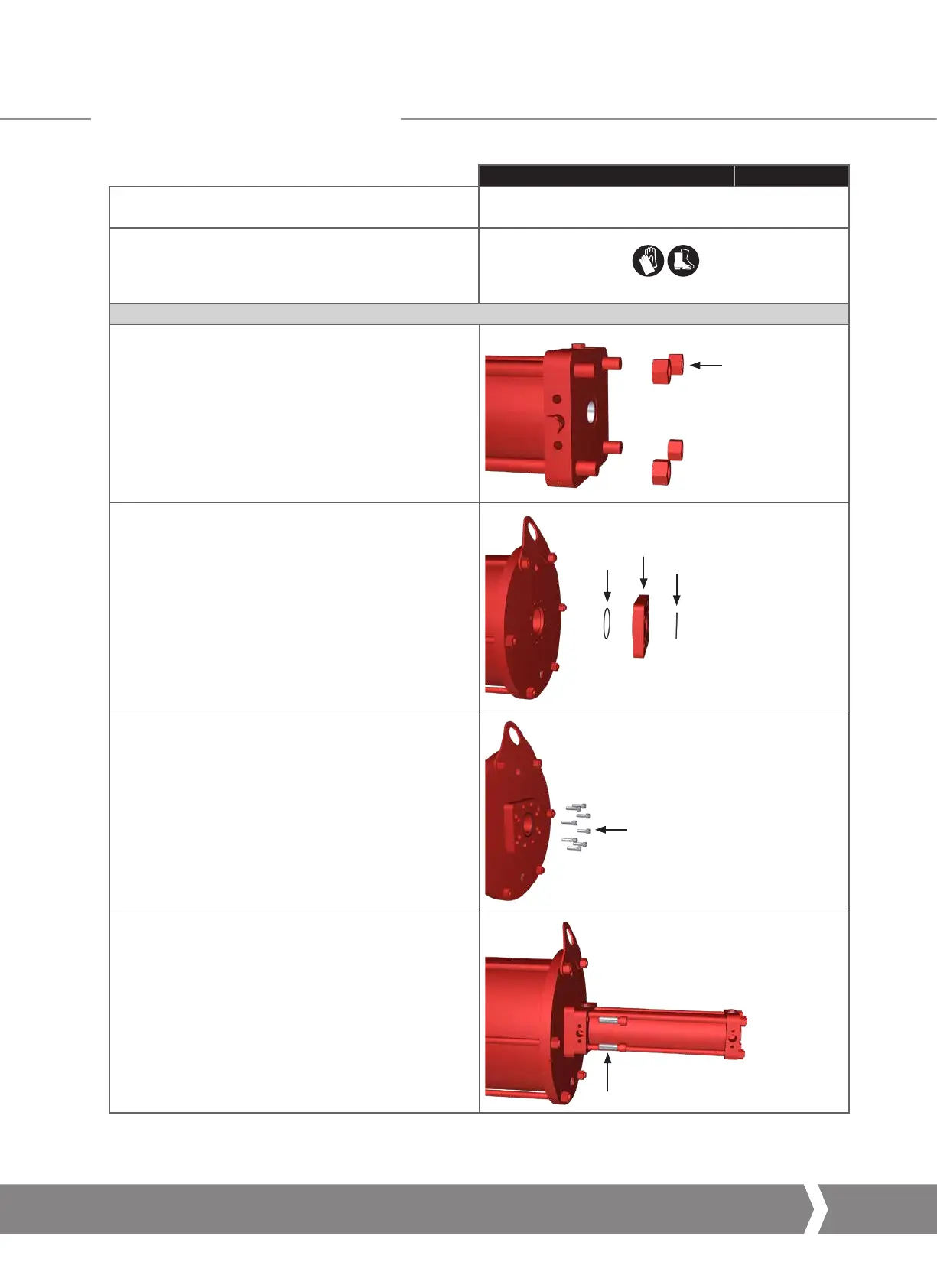

Component: Single-Acting actuator / Double-Acting actuator Task: Hydraulic Cylinder for manual override seals replacement
Equipment, Tools, Materials:
Spare seals
Wrench
Lifting tools
Project documentation
Warnings:
Preliminary Operations: Removal from Valve
34. Assemble end flange and tighten nuts (6) to the recommended
tightening torque
6
35. Assemble O-ring (V3) and (V4) on adapter flange (V2)
V2
V4
V3
36. Tighten bolts (V1) to the recommended tightening torque
V1
37. Install hydraulic cylinder and tighten bolts (19) to the
recommended torque
19
16.0 Periodic Maintenance
A4 US
US
A4
US
A4
A4 US

rotork gp series Specifications

General

Enclosure	IP66
Communication Protocols	Foundation Fieldbus
Inputs	Digital
Outputs	Digital, Relay
Display	LCD
Protection Rating	IP66
Hazardous Area Certification	ATEX, IECEx
Power Supply	24 VDC, 115 VAC, 230 VAC
