Keeping the World Flowing
57

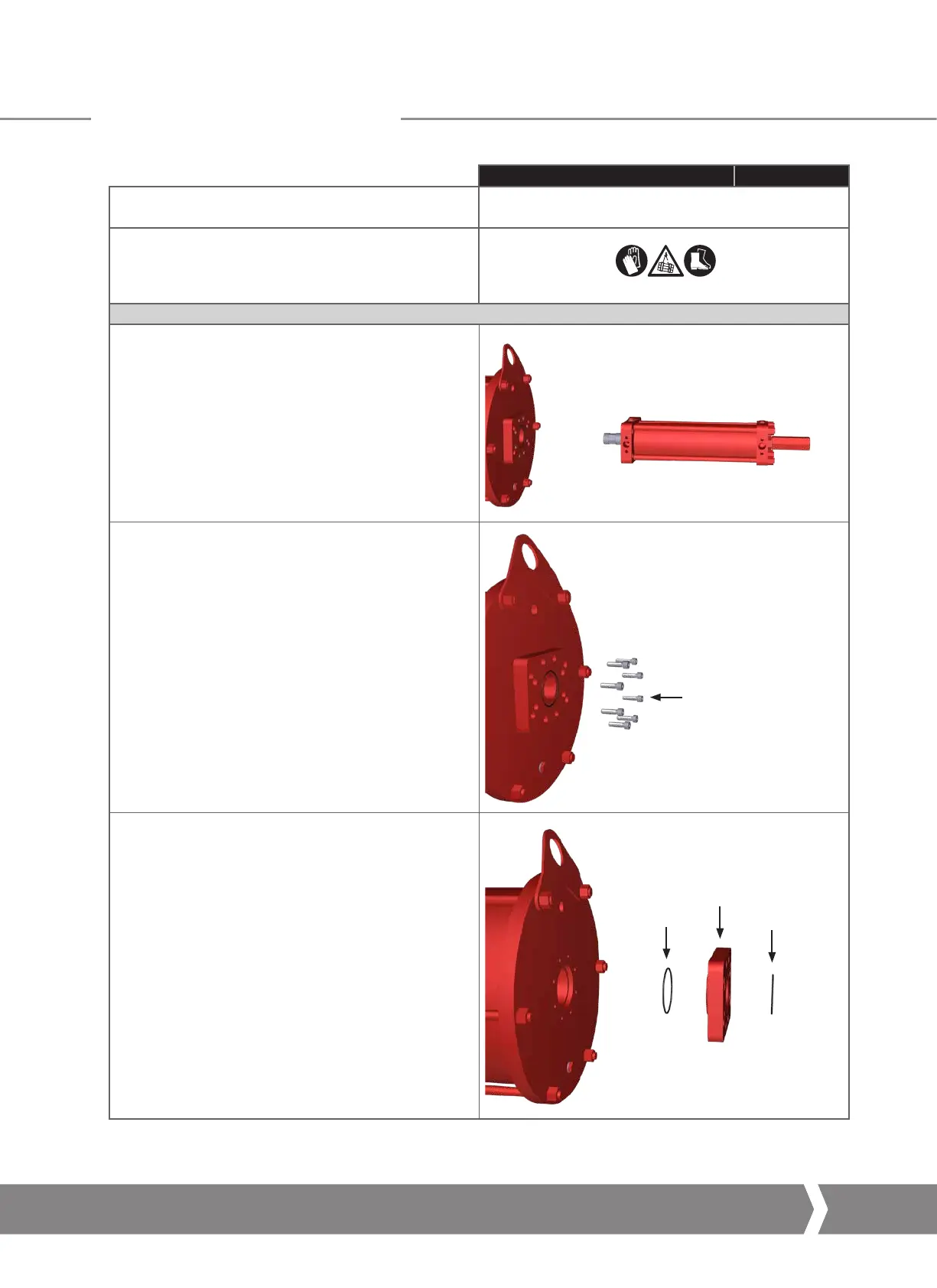

PM-GP-007 Page: 3/9
Component: Single-Acting actuator / Double-Acting actuator Task: Hydraulic Cylinder for manual override seals replacement
Equipment, Tools, Materials:
Spare seals
Wrench
Lifting tools
Project documentation
Warnings:
Preliminary Operations: Removal from Valve
16. Remove hydraulic cylinder assembly from pneumatic
cylinder group
17. Unscrew and remove bolts (V1)
V1
18. Remove adapter flange (V2) with O-ring (V3) and (V4)
V2
V4
V3
16.0 Periodic Maintenance
A4 US
US
A4
US
A4
A4 US
