91

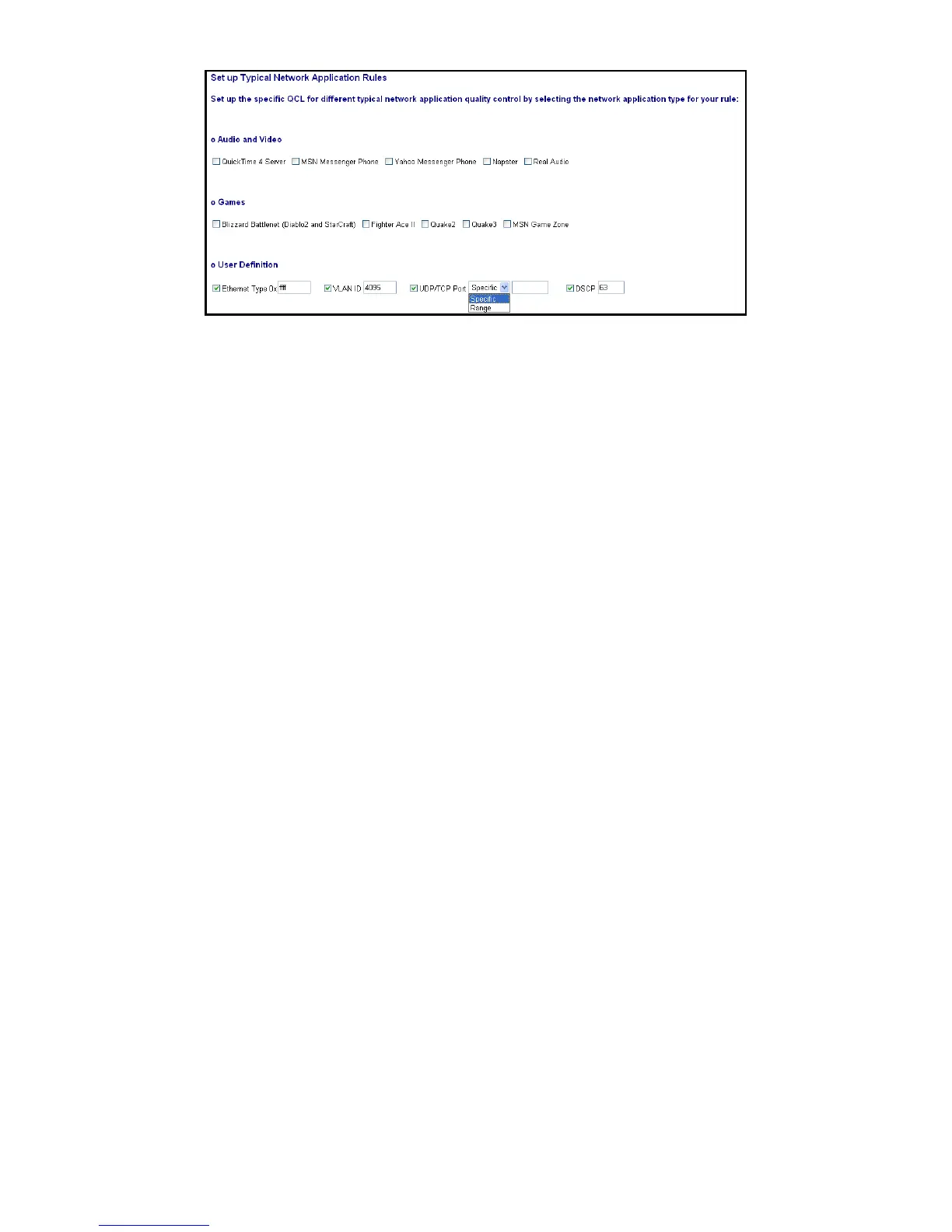

Fig. 3-51
Set up Typical Network Application Rules
Parameter description:
Audio and Video:
QuickTime 4 Server / MSN Messenger Phone / Yahoo Messenger
Phone / Napster / Real Audio
Games:
Blizzard Battlenet (Diablo2 and StarCraft) / Fighter Ace II / Quake2 /
Quake3 / MSN Game Zone
User Definition:
Ethernet Type / VLAN ID / UDP/TCP Port / DSCP
Ethernet Type Value:
Type Range: 0x600~0xFFFF
VLAN ID:
VLAN ID Range: 1~4094
UDP/TCP Port:
Two Mode: Range / Specific
UDP/TCP Port Range:
Port Range: 0~65535
UDP/TCP Port No.:
Port Range: 0~65535
DSCP Value:
DSCP Value Range: 0~63
