3-8-3.Access Control List

Function name:

ACL Rate Limiter Configuration

Function description:

The switch ACL function support up to 128 Access Control Entries (ACEs),

using the shared 128 ACEs for ingress classification. You can create an ACE

and assign this ACE for each port with <Any> or assign this ACE for a policy

or assign this ACE for a port. There are 8 policies, each port can select one of

policy, then decides which of the Permit/Deny, Rate Limitation and Port Copy

actions would take according to the ACL configuration packet’s IPv4,

EtherType, ARP Protocol, MAC Parameters and VLAN parameters.

Parameter description:

Ingress Port:

Configurable Range: Any / Policy 1-8 / Port 1-24

Any: Apply this ACE rule for each port ingress classification

Policy 1-8: Apply this ACE rule for specific policy

Port 1-24: Apply this ACE rule for specific port ingress classification

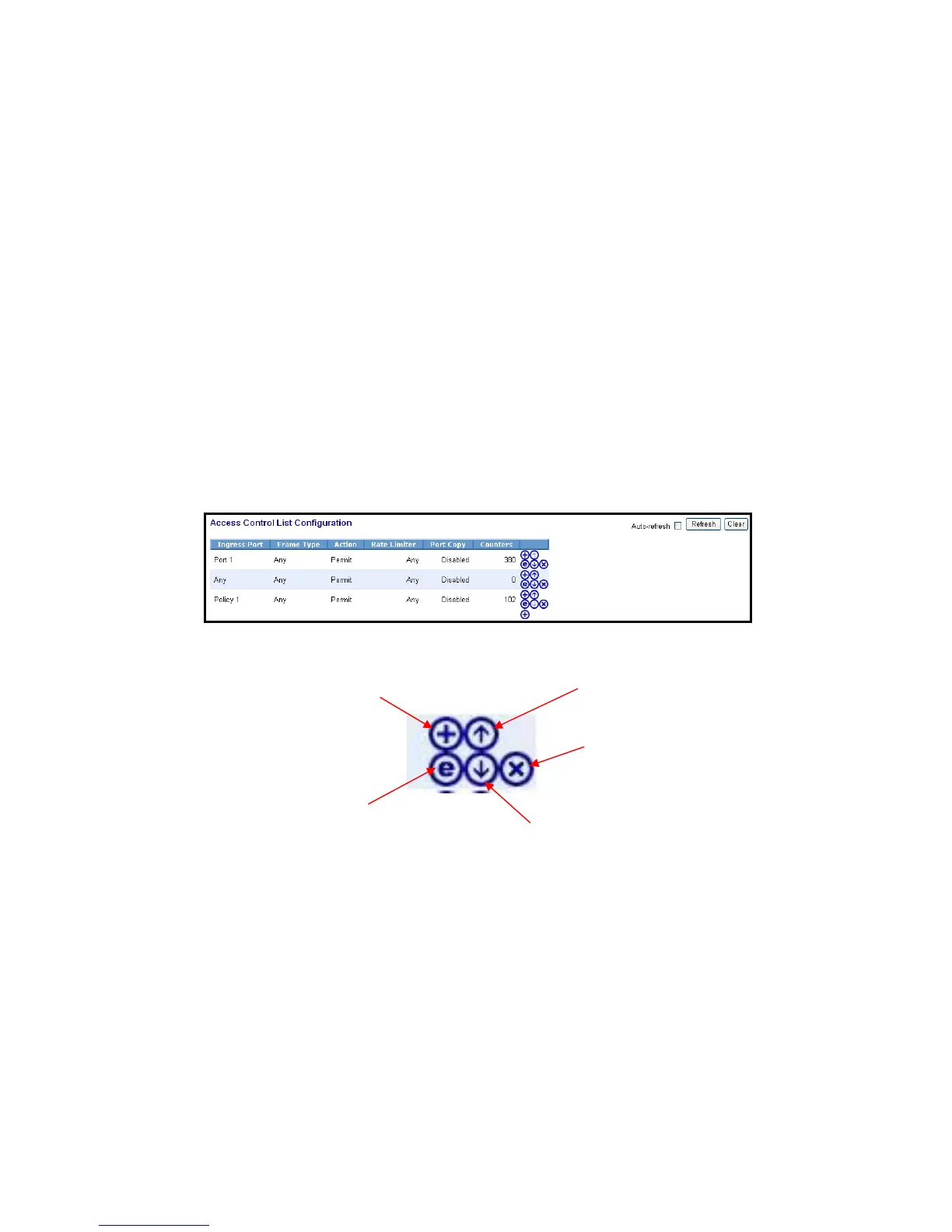

Fig. 3-66 Ingress Port

Insert an entry

Edit this entry

Move up this entry

Move down this entry
