3-6-5.Wizard
Function name:
Wizard
Function description:
The QCL configuration Wizard is targeted on user can easy to configure the
QCL rules for QoS configuration. The wizard provide the typical network
application rules, user can apply these application easily.

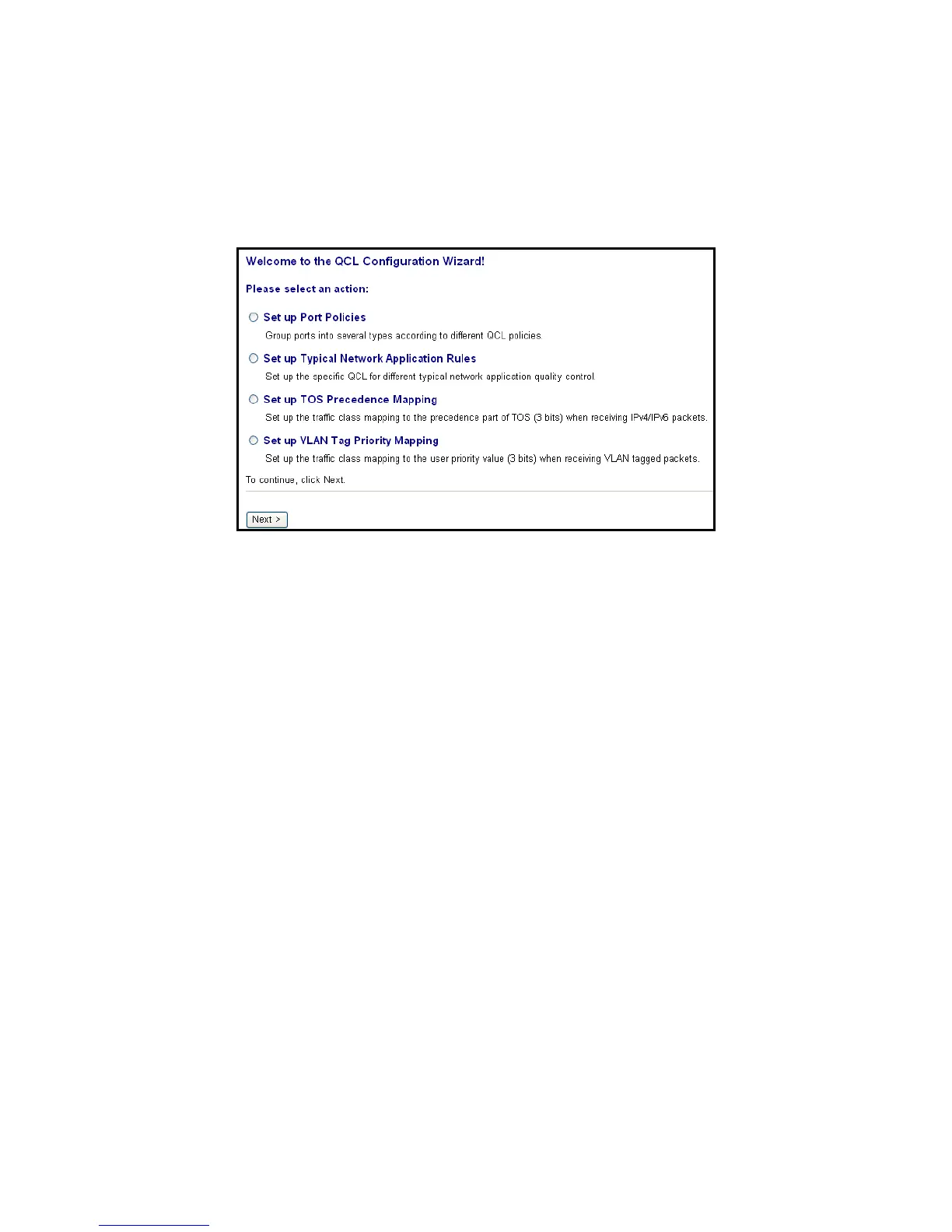

Fig. 3-45
Parameter description:
Please select an Action:
User need to select one of action from following items, then click on
<Next> to finish QCL configuration:
Set up Port Policies
Set up Typical Network Application Rules
Set up TOS Precedence Mapping
Set up VLAN Tag Priority Mapping
Next:
Go to next step.
Cancel:
Abort current configuration back to previous step.
Back:
Back to previous screen.
