3-4-5. MAC Table
Function name:
Dynamic MAC Table
Function Description:
Display the static or dynamic learning MAC entry and the state for the selected
port.
Parameter description:
Type:
Dynamic or Static.
VLAN:
VLAN identifier. This will be filled only when tagged VLAN is applied.
Valid range is 1 ~ 4094.
MAC address:
Display the MAC address of one entry you selected from the searched
MAC entries table.
Port:
The port that exists in the searched MAC Entry.
Refresh:
Refresh function can help you to see current MAC Table status.
Clear:
To clear the selected entry.
Previous Page:
Move to the previous page.
Next Page:
Move to the next page.

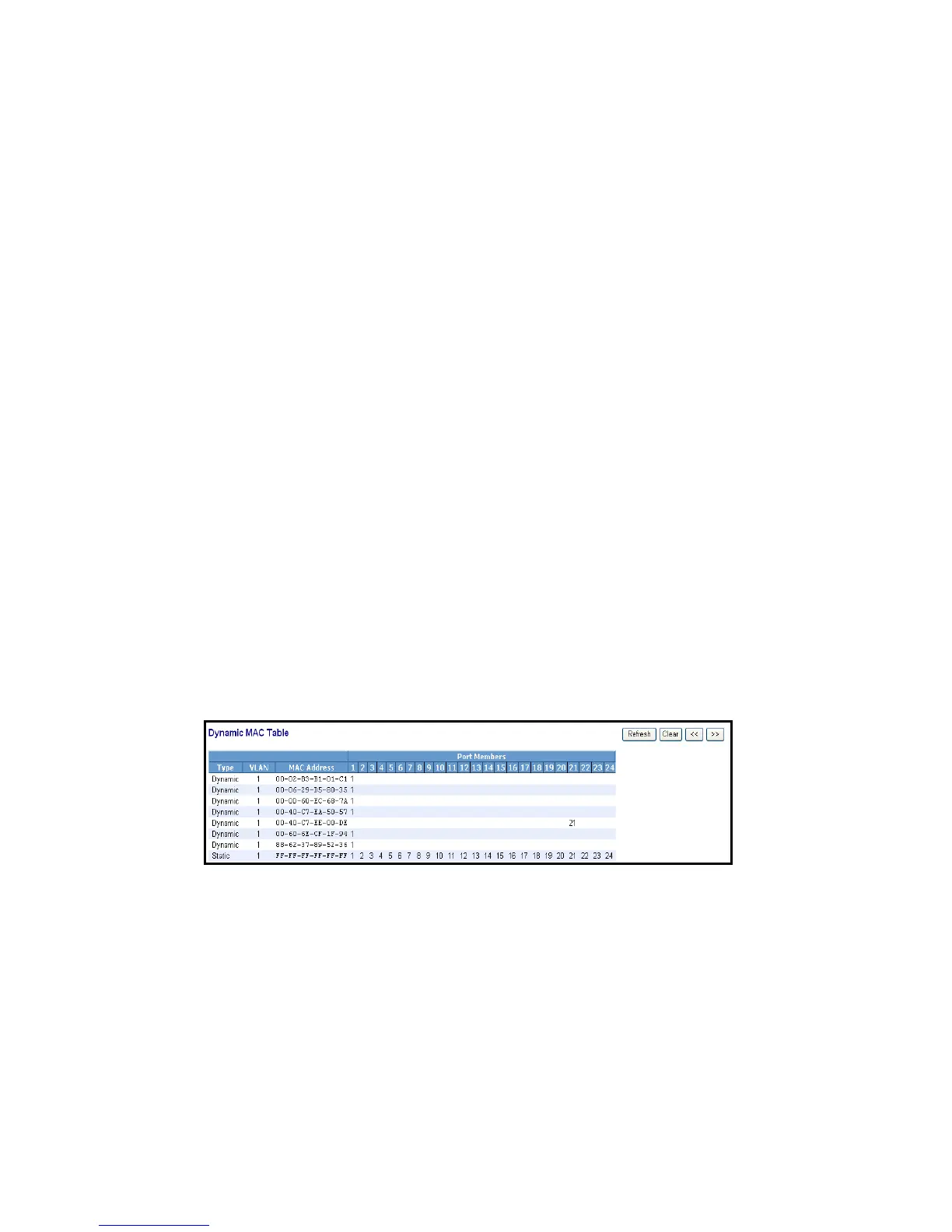

Fig. 3-30
