3-20-2 .Ping
Function name:
Ping Test
Function description:
Ping Test function is a tool for detecting if the target device is alive or not
through ICMP protocol which abounds with report messages. The switch
provides Ping Test function to let you know that if the target device is available
or not. You can simply fill in a known IP address and then click <Ping> button.
After a few seconds later, the switch will report you the pinged device is alive
or dead in the field of Ping Result.
Parameter description:
IP Address:
An IP address with the version of v4, e.g. 192.168.1.1.
Default Gateway:
IP address of the default gateway.
For more details, please see the section of IP address in Chapter 2.

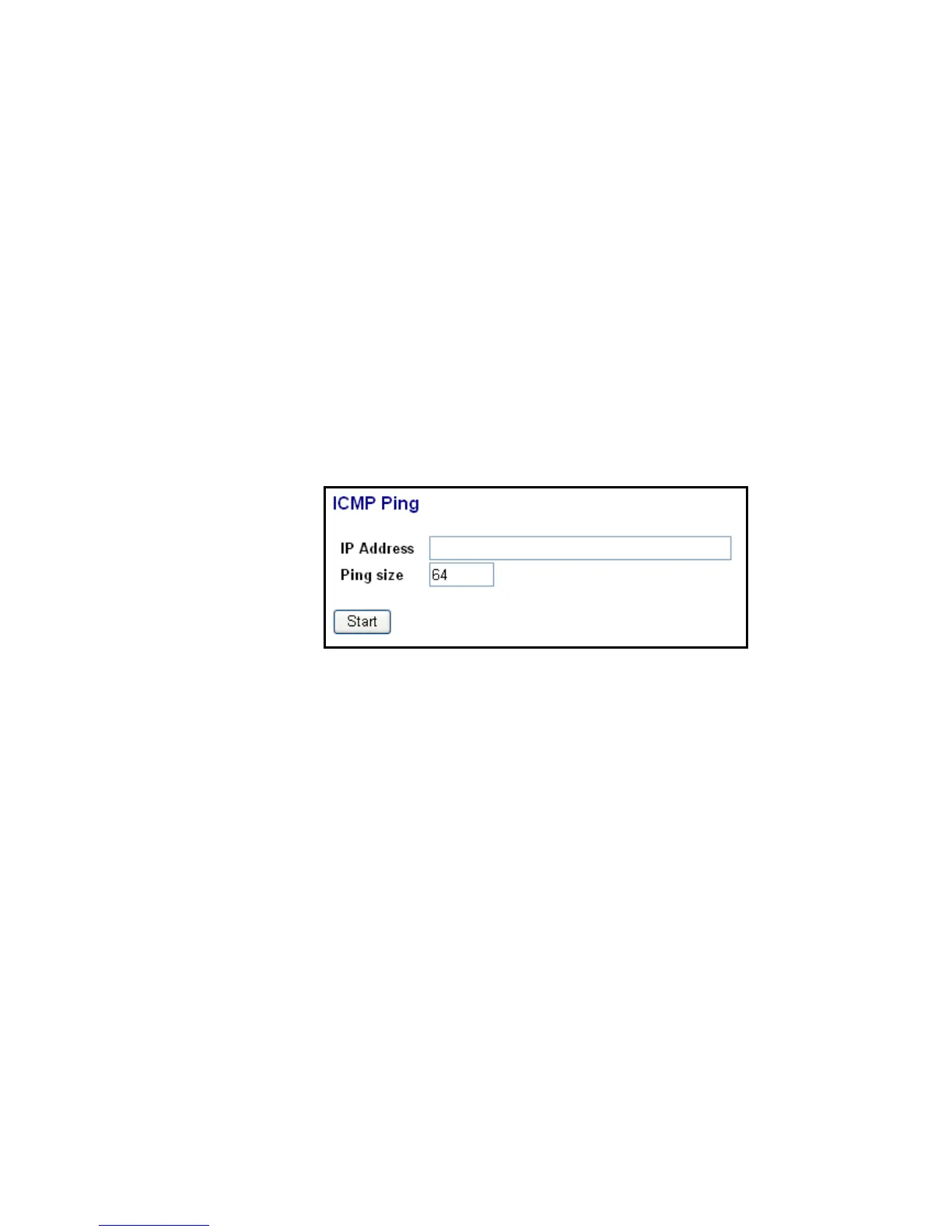

Fig. 3-173
