104
Parameter description:
Frame Type:
Range: Any / Ethernet Type / ARP / IPv4
Any: It is including all frame type
Ethernet Type: It is including all Ethernet frame type
ARP: It is including all ARP protocol frame type
IPv4: It is including all IPv4 protocol frame type

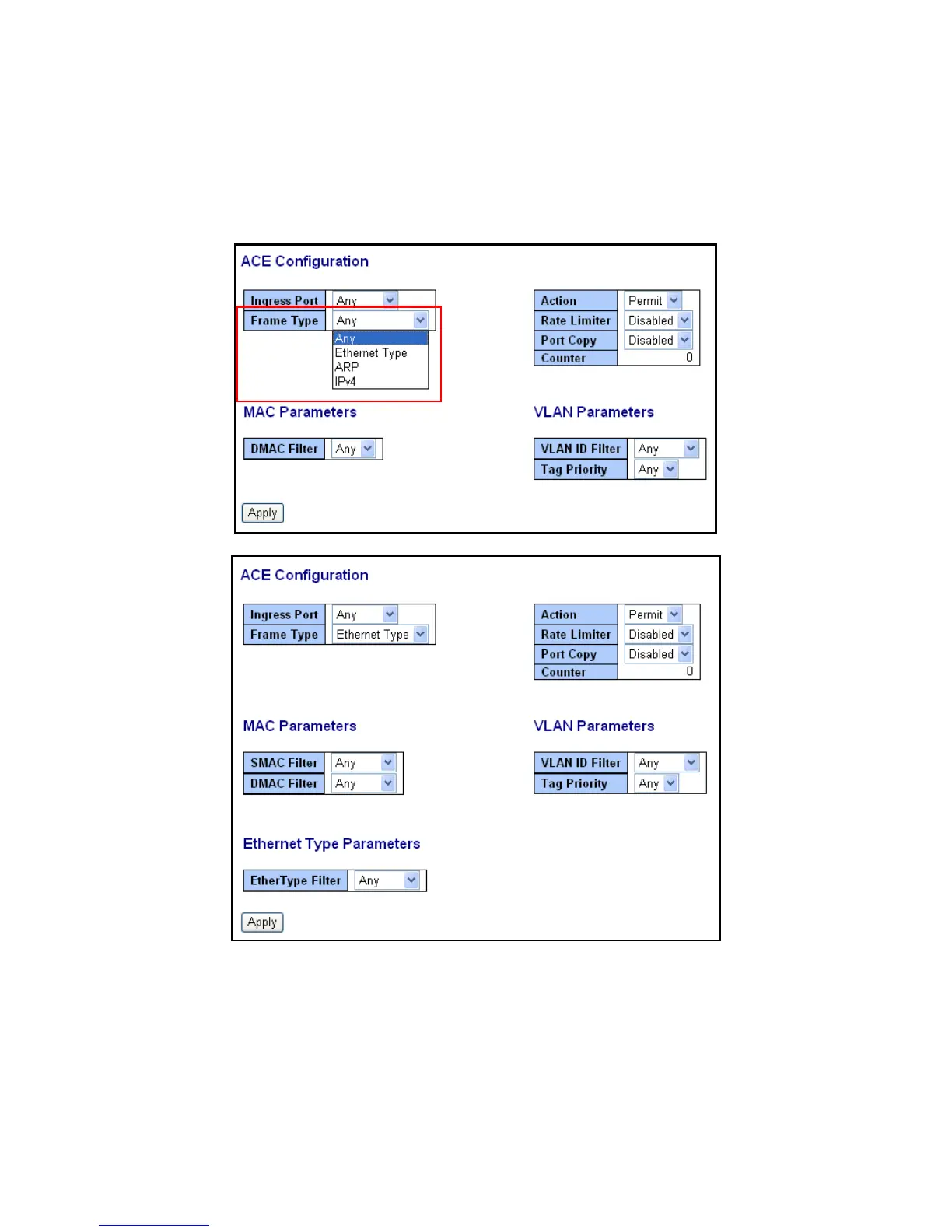

Fig. 3-69 Frame Type
Fig. 3-70
