78
class values for VLAN tagged or priority tagged frames.
Queuing Mode:
There are two Scheduling Method, Strict Priority and Weighted Fair.
Default is Strict Priority. After you choose any of Scheduling Method,
please click Apply button to be in operation.
Queue Weighted:
There are four queues per port and four classes weighted number (1 / 2 /
4 / 8) for each queues, you can select the weighted number when the
scheduling method be set to “Weighted Fair” mode.

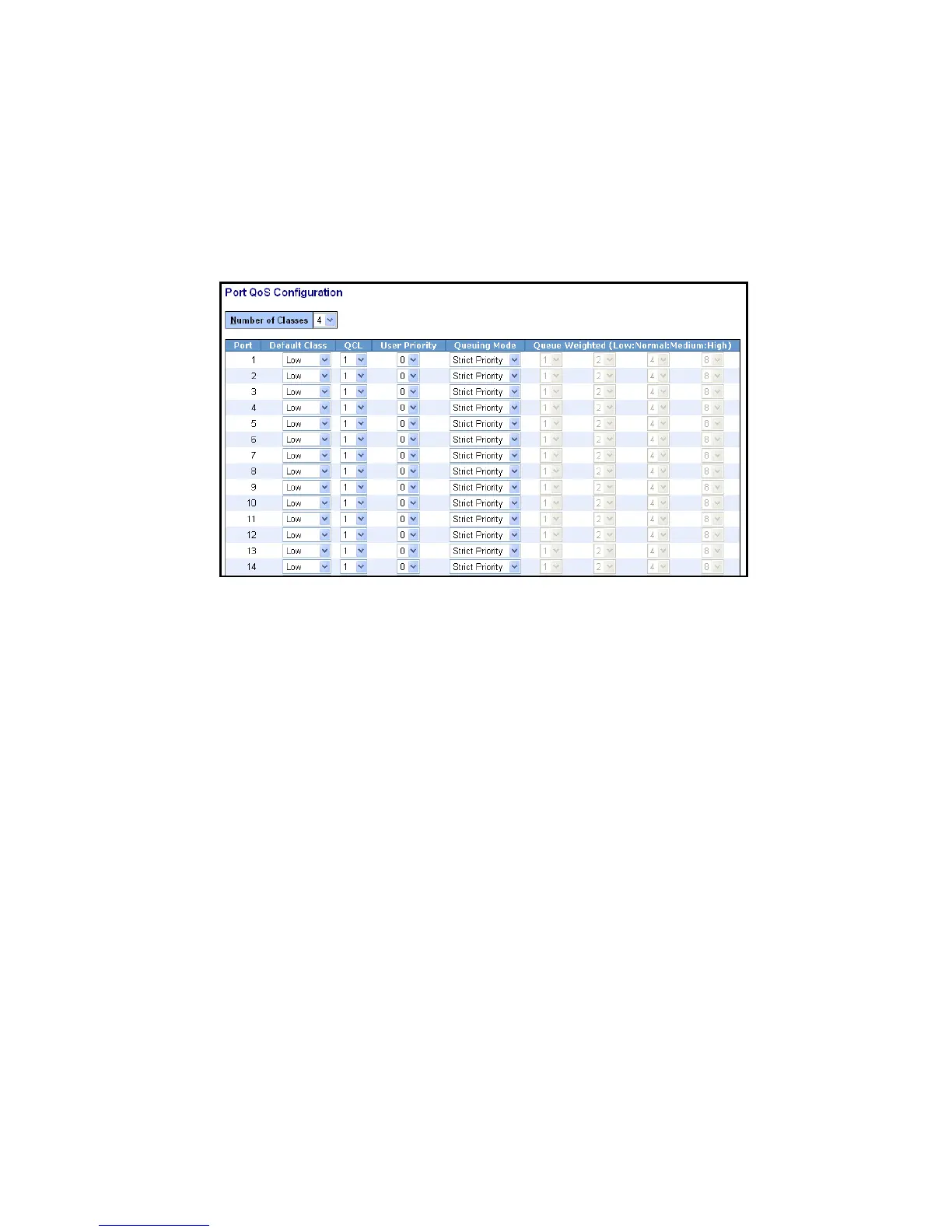

Fig. 3-34
