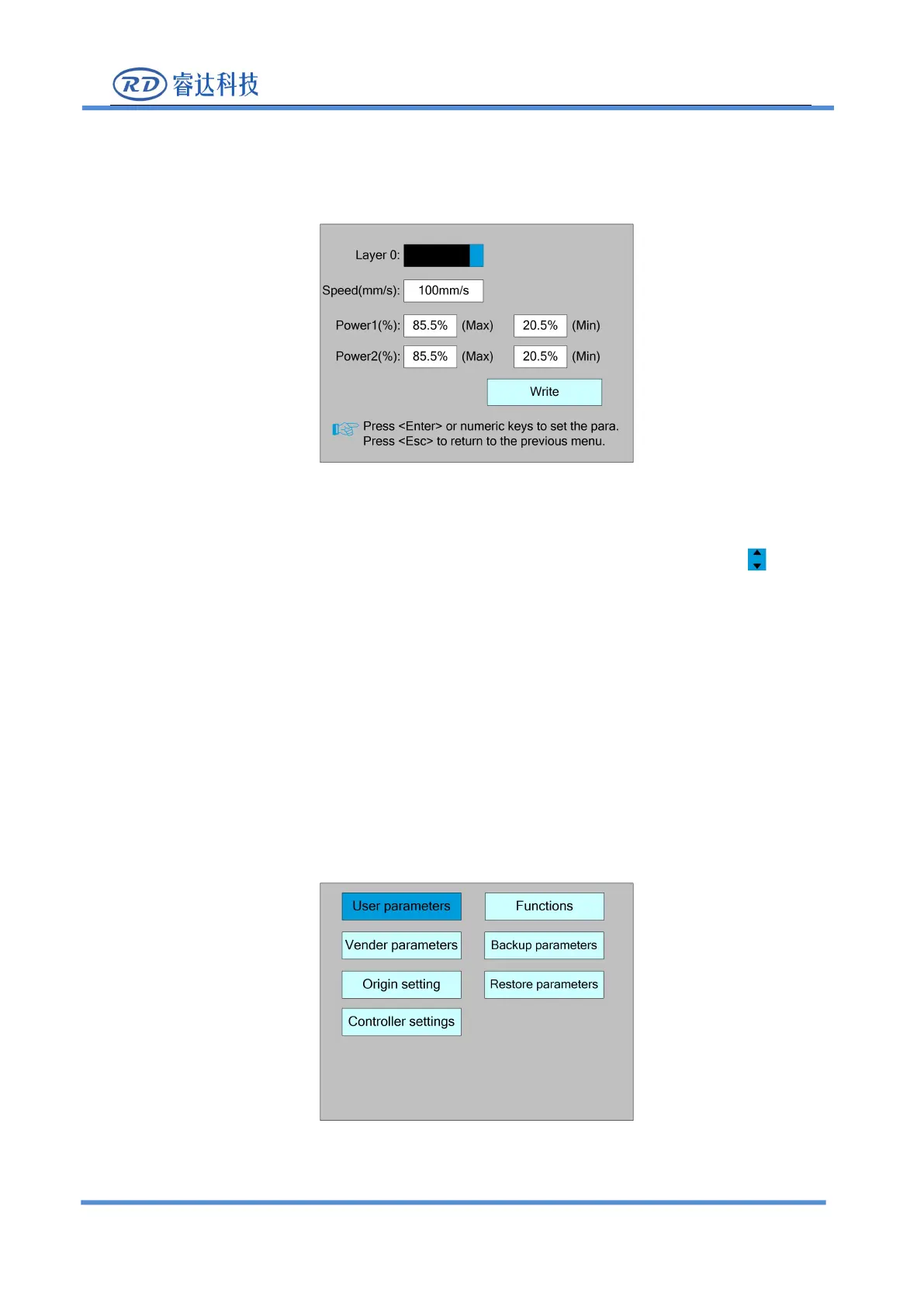

And then “Up and down” Keys can be pushed to select the intent layer, on that time, user can
push <Enter> key to check the selected layer’s parameters, show as below:
At this point, the "blue selection block" stays on the layer number entry, and then press the
<Enter> key to enter the selection layer mode, while the "blue selection block" becomes , press
the "up/down" key to select other layers, and then press the <Enter> key to exit the layer selection
mode. Then press the "up/down" key to move the "selection block" to the layer parameter entry to
be modified. Press the number key and the backspace key to set and modify the parameters. After
setting the parameters, move the "selection block" to the "write parameters" entry. Press the
<Enter> key to save the current layer parameters, otherwise the parameters will not be saved. Press
the <Esc> key interface to disappear and return to the main interface.
8.5 Menu Function
Push the < Menu> key when the screen is on the main interface, it will show as below:
