Ruida Technology RDC6445S - Screen Origin

RDC6445G/S Control System manual
SHENZHEN RUIDA TECHNOLOGY
43
Press the direction key to select a language and press the <Enter> key to set up the function and
automatically return to the menu interface.
8.6.2 Screen origin

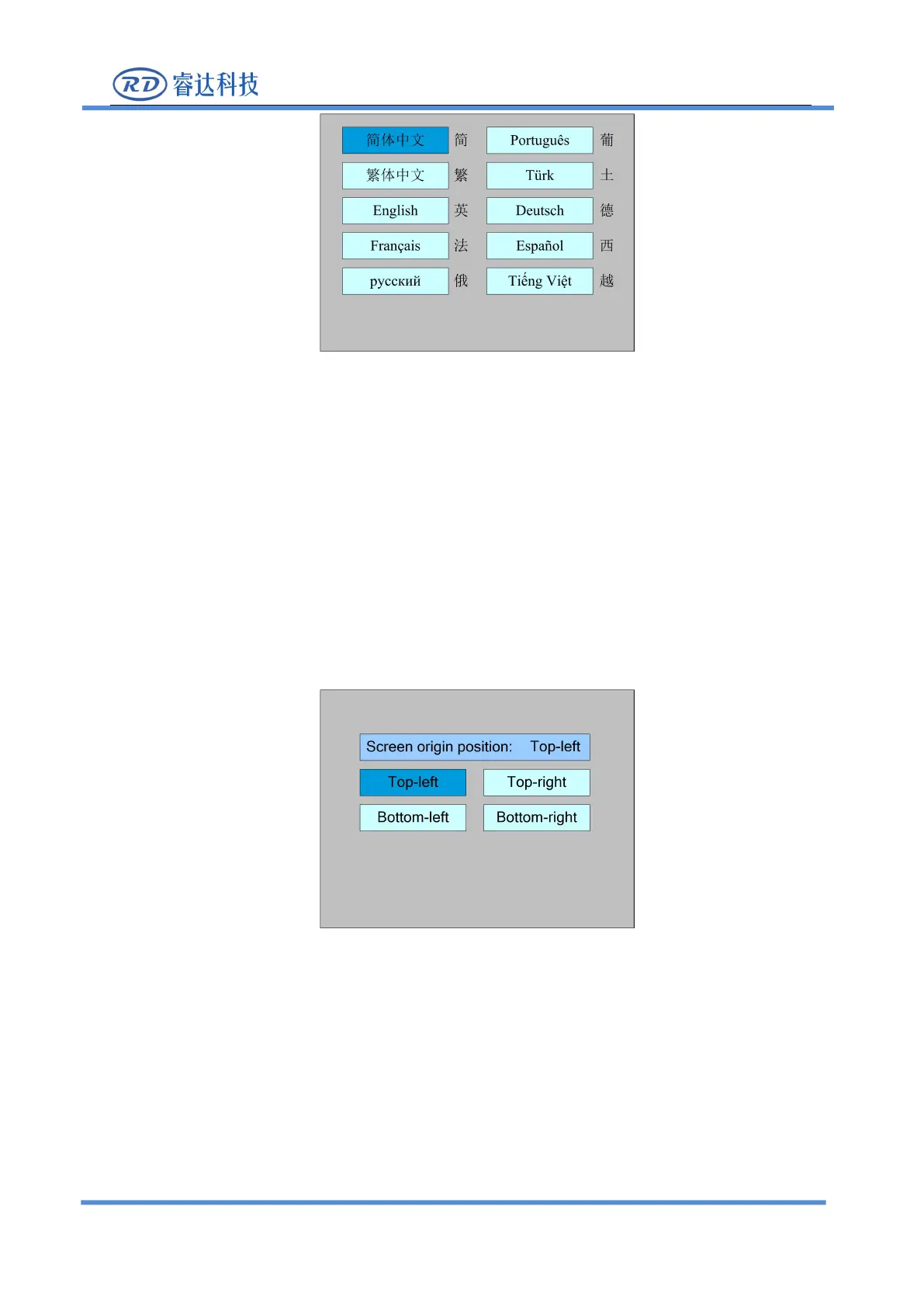

Select the "Screen origin" entry under the controller setting interface, press the <Enter> button,
and then pop up the interface as follows:
The display screen's origin position is set here, and different screen origin positions are selected
to adjust the display graphics position in different X or Y directions.
Press the direction key to select a item and press the <Enter> key to set up the position and
press the <Esc> key return to the main interface.
Figure
8.6.1
Figure
8.6.2
