KT332N Cutting &engraving control system user manual V1.1
4

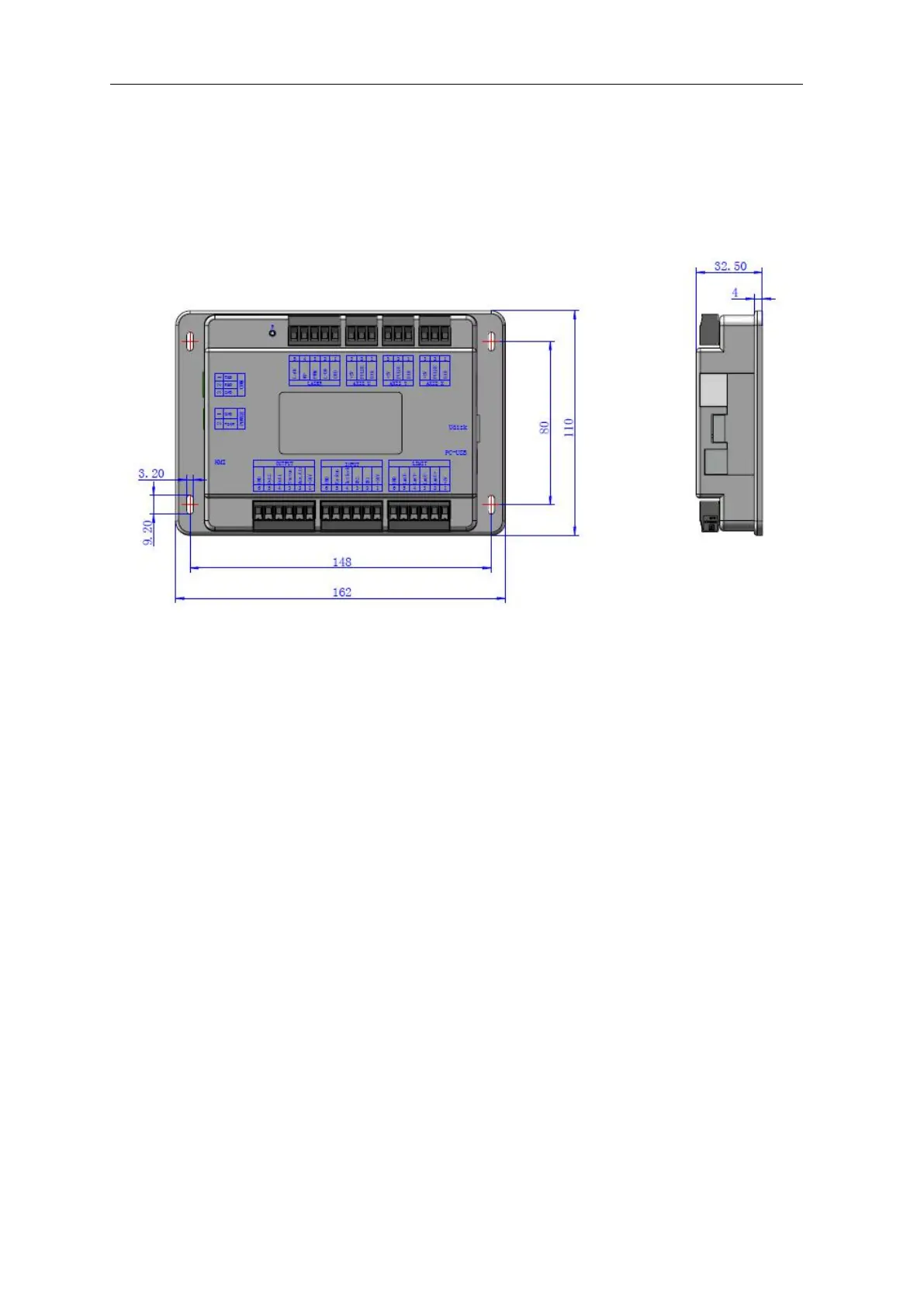

2.1 Dimension of controller
All dimensions are in mm, accurate to 0.1mm (four of the positioning holes are symmetrical)
2.2 Dimension of panel
All dimensions are in mm, accurate to 0.1mm
