KT332N Cutting &engraving control system user manual V1.1
31
8.6.1.1Motion parameter

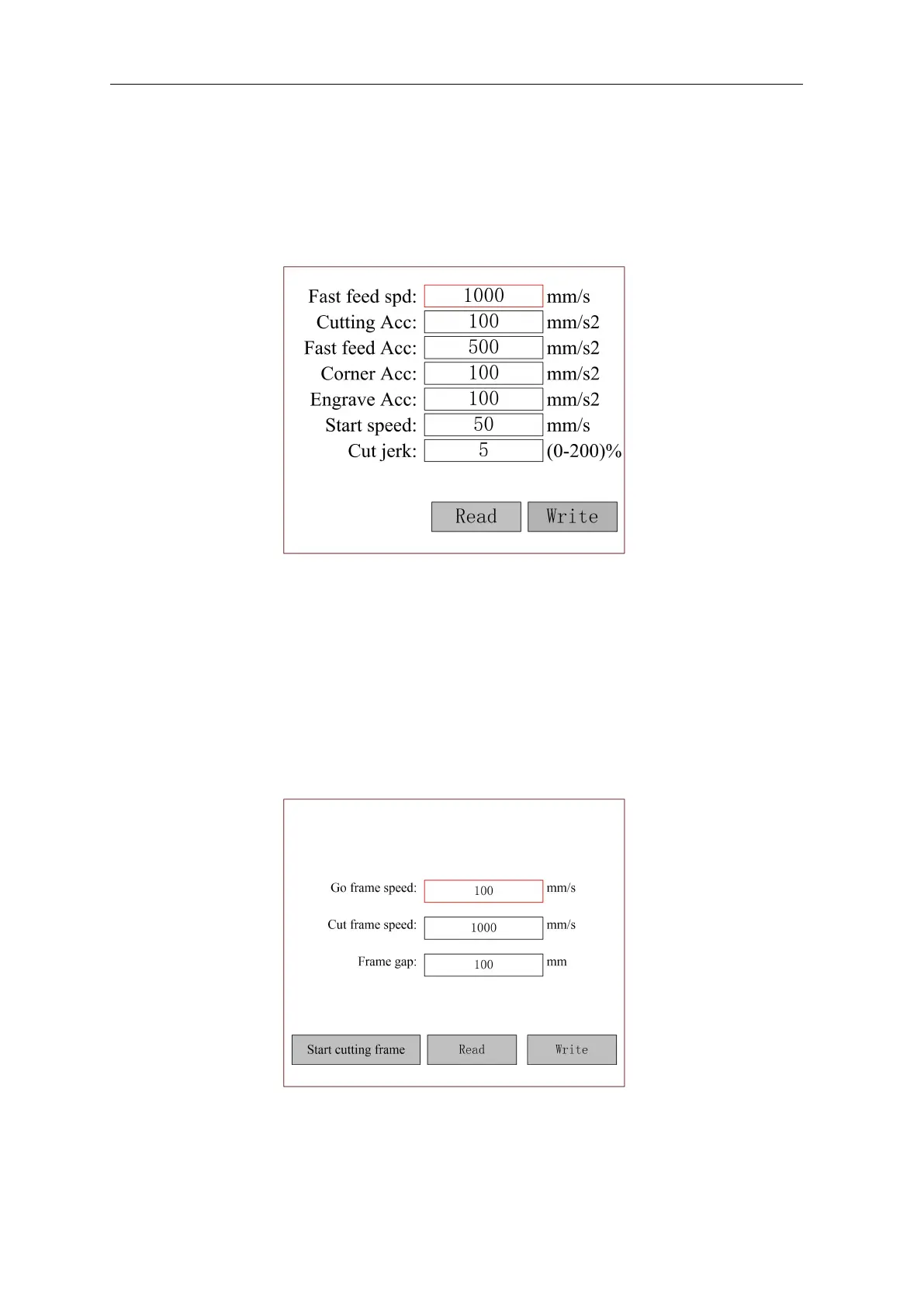

In the parameter setting interface, press [Movement parameter] , and the movement parameter
setting interface will pop up as follows:
Figure8.6.1-1
Refer to Section 8.10 for parameter setting operation. Press the [Esc] key. The interface exit and
returns to the previous interface.
8.6.1.2 Frame setting
In the parameter setting interface, press [Frame setting] , the frame setting interface pops up as
follows:
Figure 8.6.1-2
Refer to Section 8.10 for parameter setting operation. Press the [Esc] key. The interface exit and
returns to the previous interface.
