KT332N Cutting &engraving control system user manual V1.1
Press [Machine Config] in the parameter setting interface, and the machine configuration
interface pops up as follows:

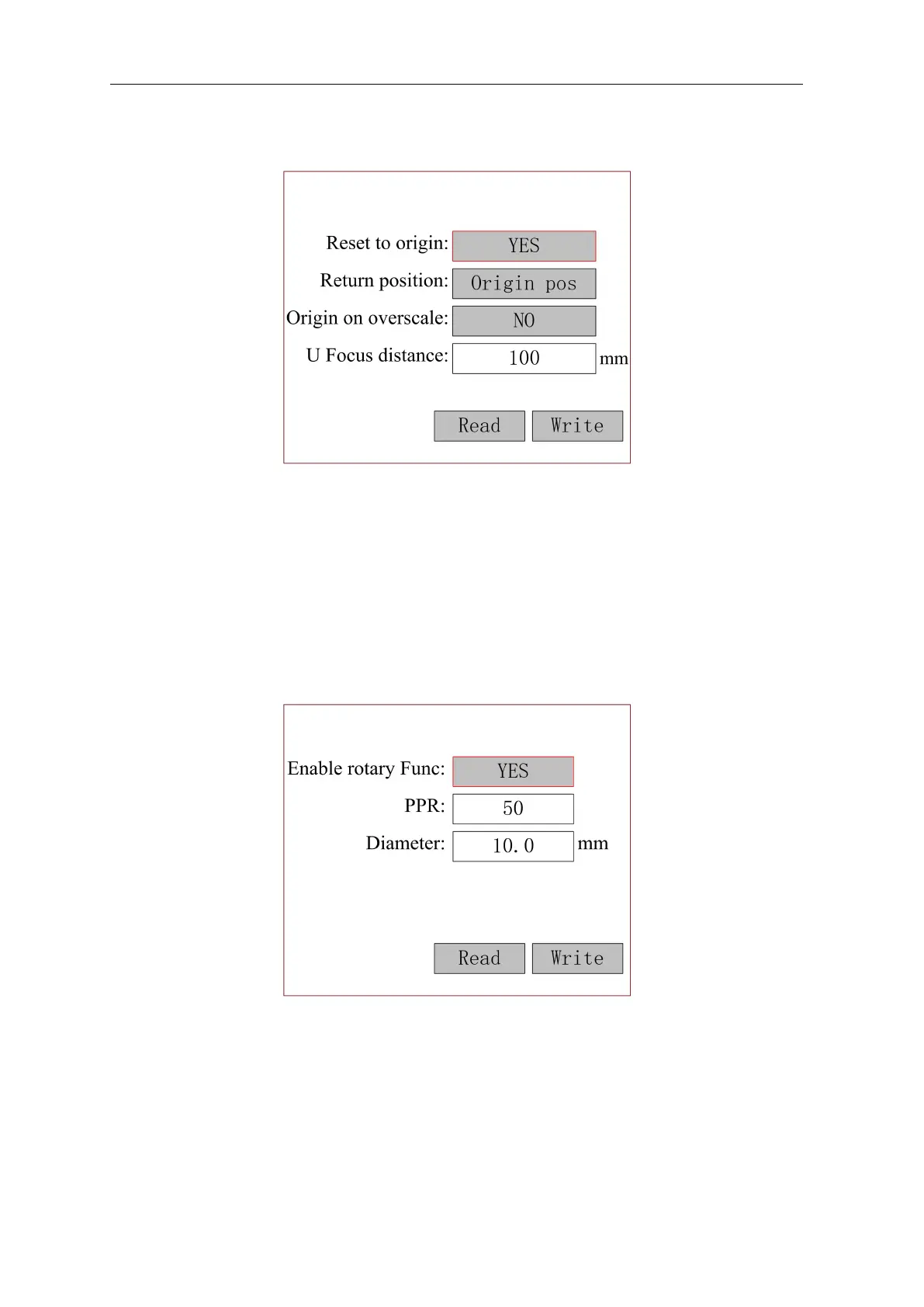

Figure8.6.1-5
Refer to Section 8.10 for parameter setting operation. Press the [Esc] key. The interface exit and
returns to the previous interface.
8.6.1.6 Rotate function settings
Press [Rotate Function Setting] in the parameter setting interface, and the rotation function
setting interface pops up as follows:
Figure 8.6.1-6
Refer to Section 8.10 for parameter setting operation. Press the [Esc] key. The interface exit and
returns to the previous interface.
8.6.1.7 IP Set
KT332G do not support Ethernet. Only KT332N can support Ethernet and USB.
