4.10.2 Configuration Preparations
Confirm the IP address of the device to be mapped on the LAN and service port ID.
Ensure that the service to be mapped to an external network can be properly used on the LAN.
4.10.3 Procedure
Mobile Phone View: Choose More > Switch to PC view > More > Advanced > Port Mapping.
PC View: Choose More > Advanced > Port Mapping.

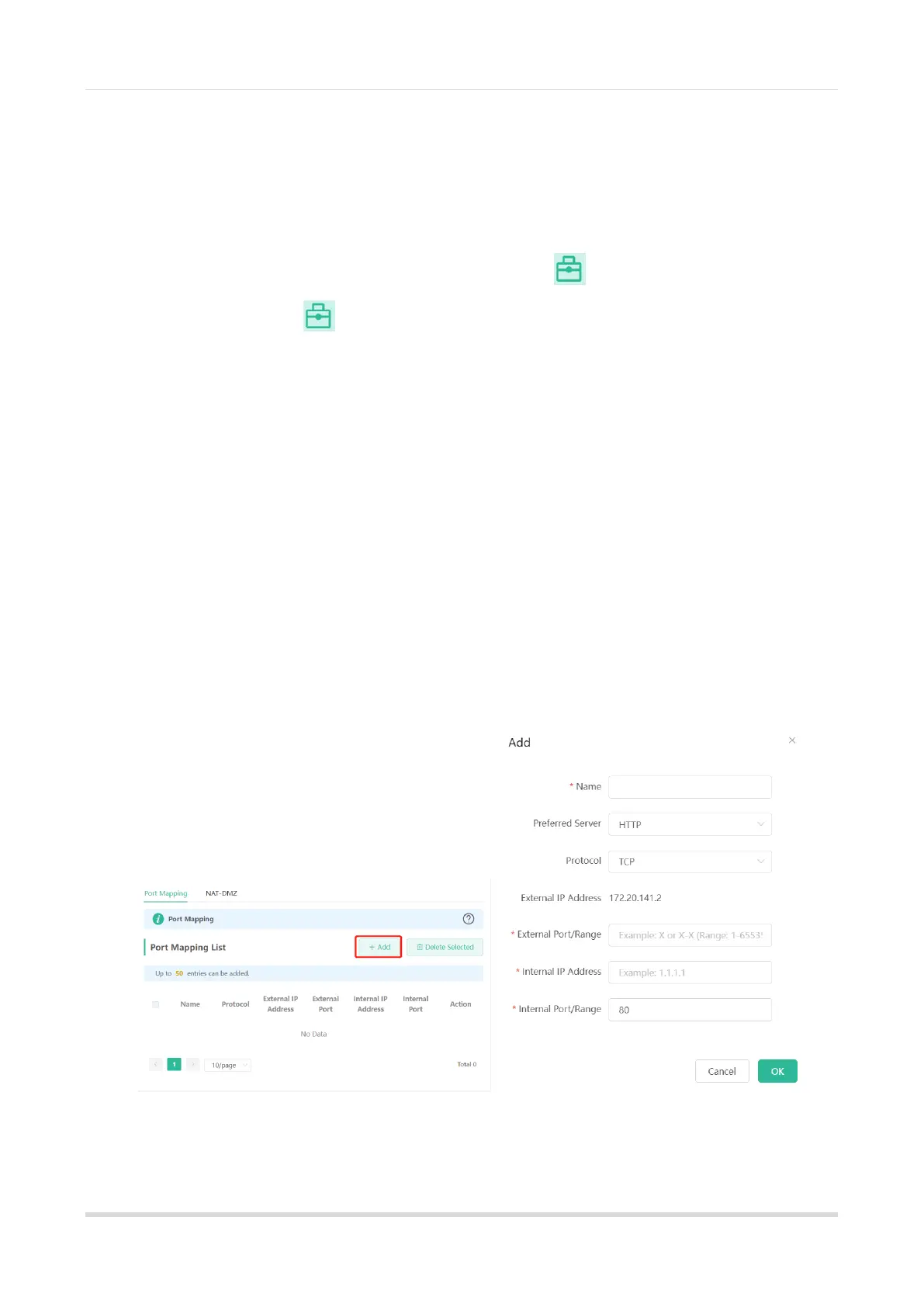

Click Add. In the pop-up dialog box, enter the name, service type, protocol type, external port/range, internal IP
address, and internal port/range. A maximum of 50 port mapping rules can be configured.
Name: Enter a name for ease of maintenance.
Preferred Server: Select a service to be mapped, such as HTTP or FTP. The device automatically fills in the
internal port number of the service. If you are not sure of the service, you can select Custom.
Protocol: Select the transport-layer protocol used by the selected service, such as ALL, TCP, or UDP. The
configuration must be consistent with the client configuration of the selected service.
External Port/Range: Enter the port number used by an external network to access the service. You need to
confirm the port number in software, such as camera monitoring software.
Internal IP Address: Enter the IP address of the internal server that needs to be mapped to a WAN port, that
is, the IP address of the LAN device to be accessed by an external network, such as the IP address of a network
camera.
Internal Port/Range: Enter the port number used by an application accessed by an external network, such as
port 8080 used by the Web service.
