Front Panel

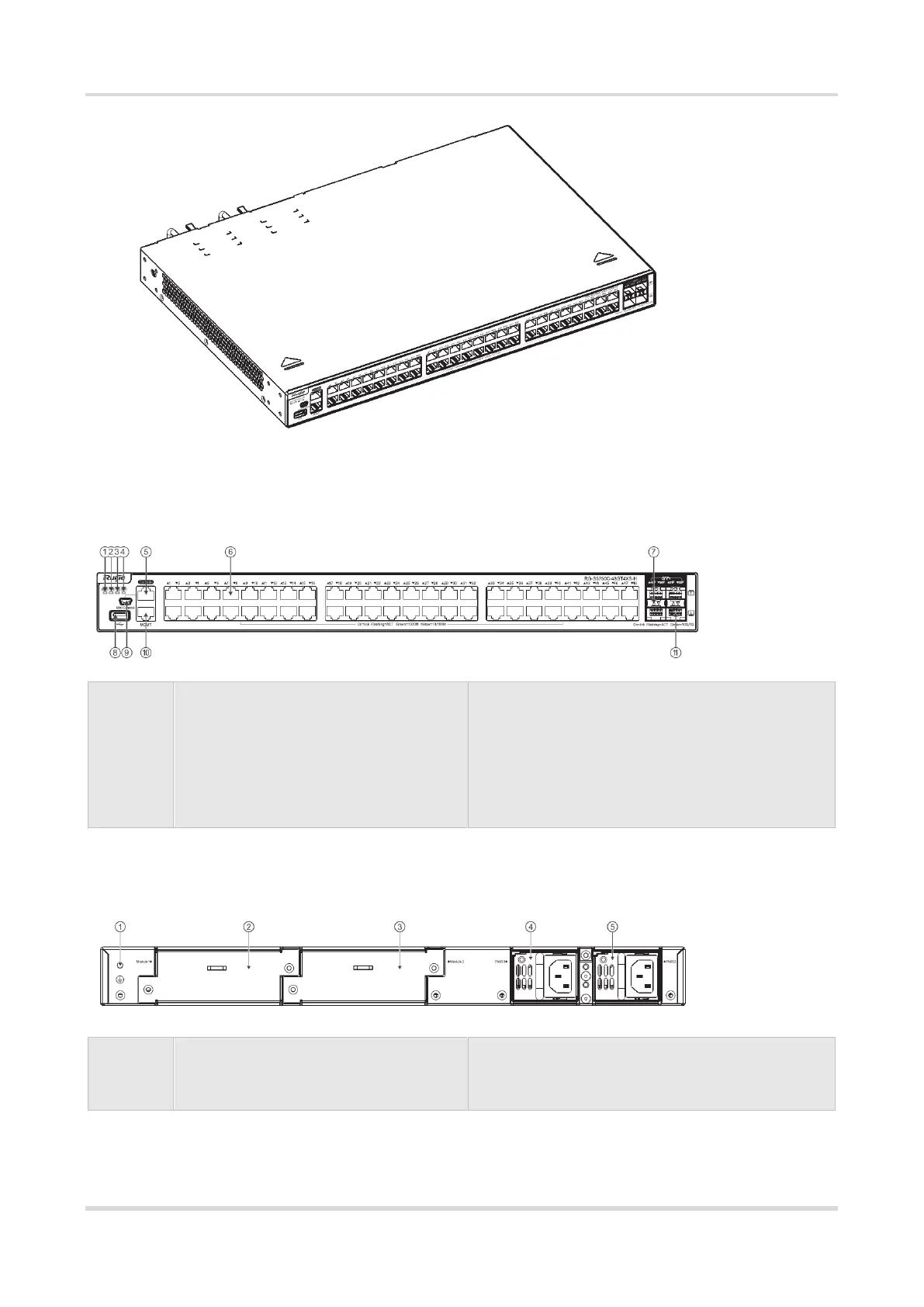

Figure 1-6 Front Panel of RG-S5750C-48GT4XS-H
Note:
1. System status LED
2. Power status LED (PWR1)
3. Power status LED (PWR2)
4. MGMT port status LED
5. Console port
6. 10/100/1000Base-T Ethernet port
7. Switch port status LED
8. USB port
9. Mini USB port
10. MGMT port
11. 10GE SFP+ port
Back Panel
Figure 1-7 Back Panel of RG-S5750C-48GT4XS-H
Note:
1. Grounding stud
2. Expansion module slot 1
3. Expansion module slot 2
4. Power module slot 1
5. Power module slot 2
Power Supply
