8 Commissioning
8.1 Scope of delivery and description of the unit
The smoke detector package contains the smoke detector and a
mounting plate. To detach the mounting plate, hold the front of
the smoke detector and twist the mounting plate anti-clockwise.

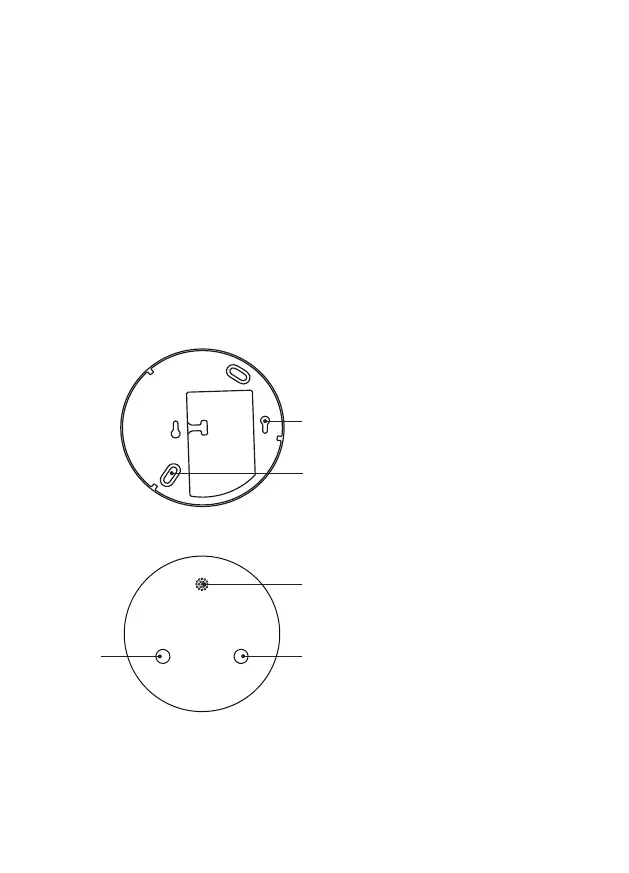

(A) Mounting holes for installati-
on via a standard installation
socket
(B) Mounting holes for ceiling
installation
(C) Acoustic signal generator of
the smoke detector
(D) Visual signal generator of
the smoke detector (emer-
gency lighting/white LED)
(E) Smoke detector test button
with red signal LED
Accessories:
Two dowels
Two screws
(A)
(C)
(E)
(B)
(D)
