ing nut can be loosened by putting two nuts on the
opposite end and locking them against each other.
Hold these two nuts securely with a locking pliers
and loosen remaining nut.

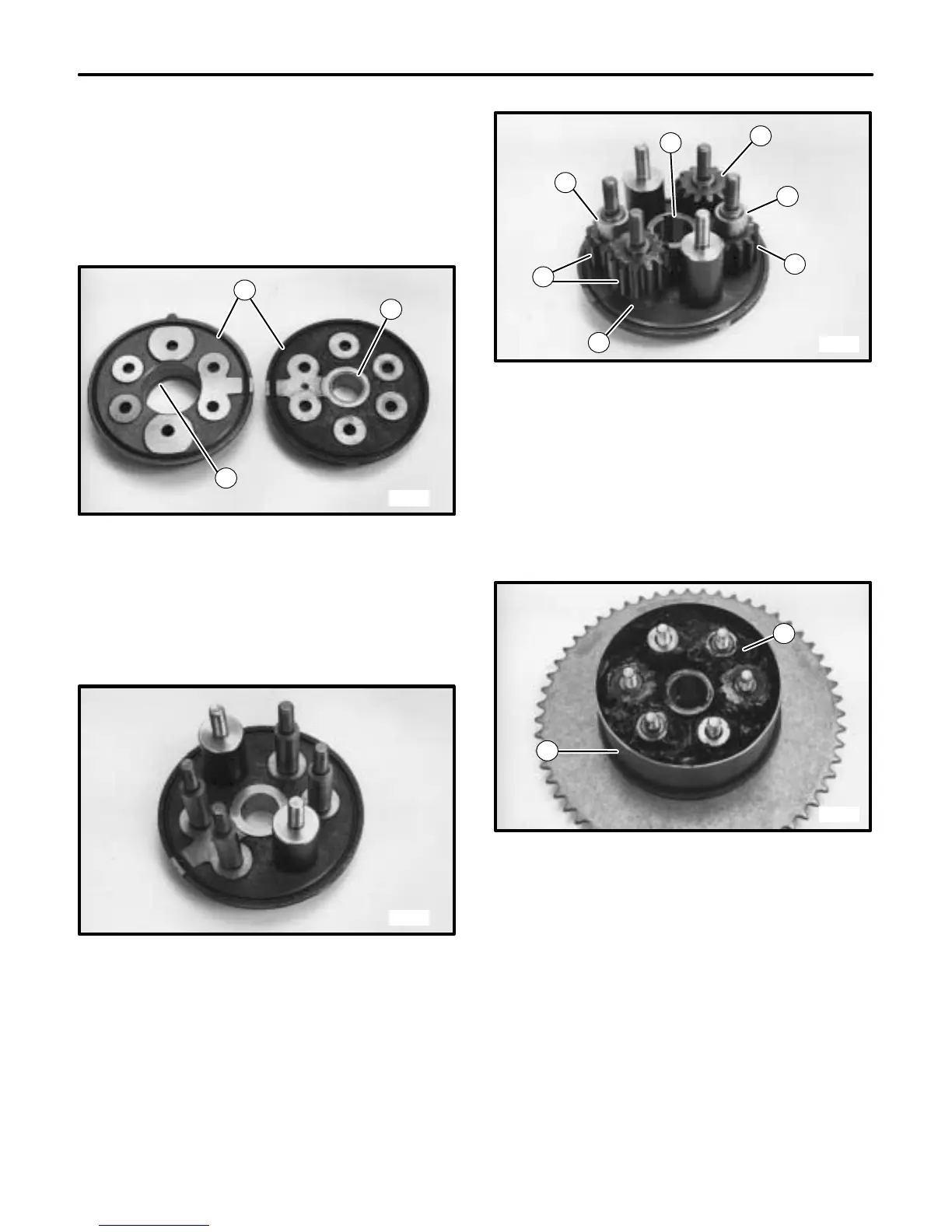

9. Replace all three rubber “O” ring seals and the bush-
ing in the sprocket half of the housing. (See
FIGURE 26.)
3796
2
2
1
FIGURE 26
1. Bushing
2. “O” Ring Seals
10. Set spacers into sprocket side of housing in pattern
shown in FIGURE 27.
3797
FIGURE 27
11. Install washer and axle shaft gear(washer is placed
beneath the axle shaft gear), planet gears and gear
spacers in pattern shown in FIGURE 28.
3798
1
2
3
1
1
2
2
FIGURE 28
1. Planet Gears
2. Gear Spacers
3. Axle Shaft Gear
12. Install differential housing ring and fill with lithium
base lubricant. (See FIGURE 29.)
3799
1
2
FIGURE 29
1. Housing Ring
2. Lithium Base Lubricant
13. Install differential housing end so that alignment
marks are in line with each other. (See FIGURE 30.)
Apply Loctite #271or equivalent to nuts and start
nuts onto studs.
