Ryobi 3302H - Plate Tensioning and Polyester Plate Prep

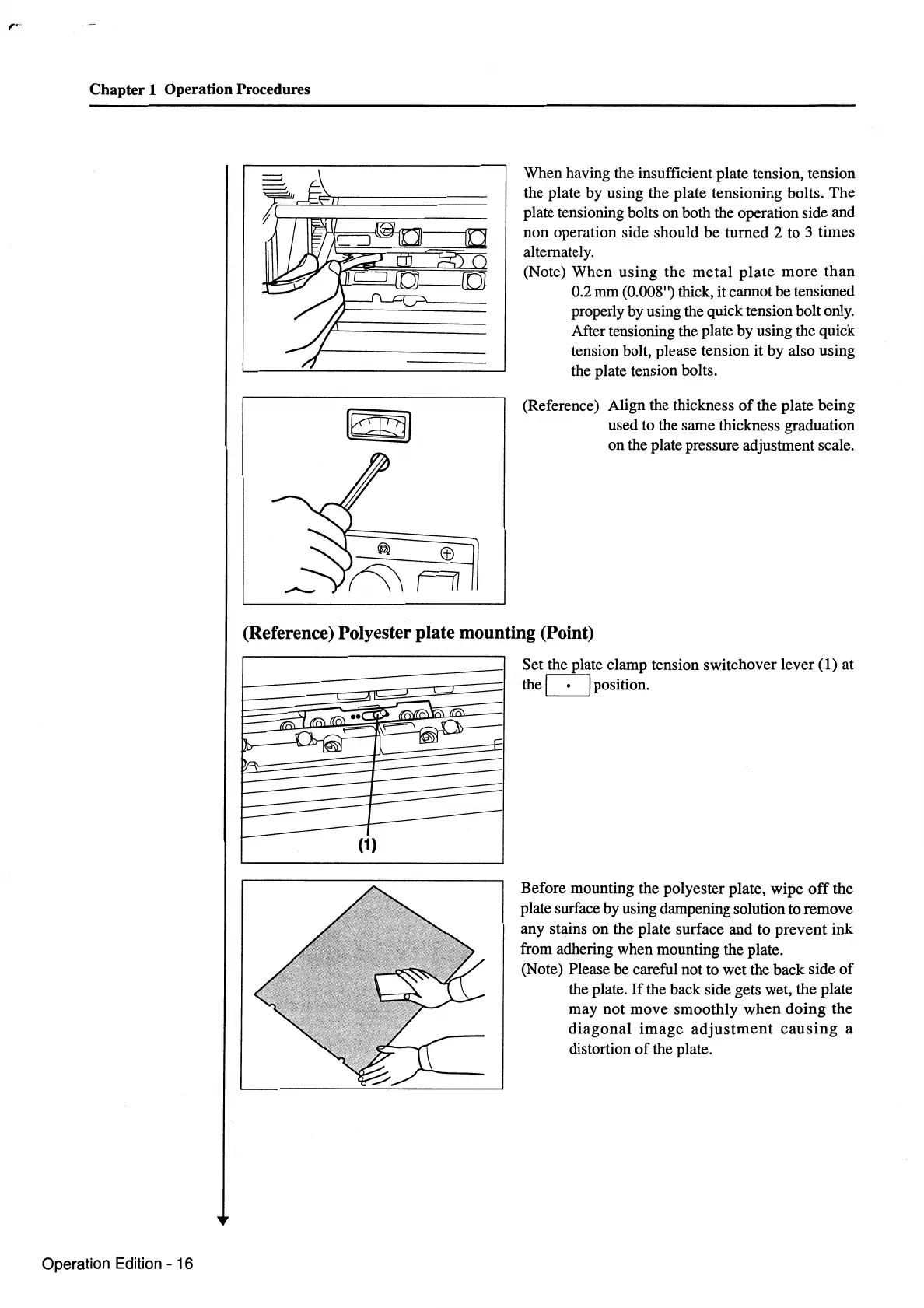

Chapter 1 Operation Procedures
When having the insufficient plate tension, tension
the plate by using the plate tensioning bolts. The
plate tensioning bolts on both the operation side and
non operation side should be turned 2 to 3 times
alternately.
(Note)
When using the metal plate more than
0.2 mm (0.008") thick, it cannot be tensioned
properly by using the quick tension bolt only.
After tensioning the plate by using the quick
tension bolt, please tension it by also using
the plate tension bolts.
(Reference) Align the thickness
of the plate being
used to the same thickness graduation
on the plate pressure adjustment scale.
(Reference) Polyester plate mounting (Point)
w
..,..,_
~
-
-
Operation Edition - 16
~ .,r--\
.};.~ rrru._rrru_ •• ~ -~~~
«ill~ F='~
...s::
-
-
-
-
(1)
Set the plate clamp tension switchover lever (1) at
the
c=J position.
Before mounting the polyester plate, wipe
off the
plate surface by using dampening solution to remove
any stains on the plate surface and to prevent ink
from adhering when mounting the plate.
(Note) Please be careful not to wet the back side
of
the plate. If the back side gets wet, the plate
may not move smoothly when doing the
diagonal image adjustment causing a
distortion
of the plate.
