Chapter
2 Blanket Cleaning Device

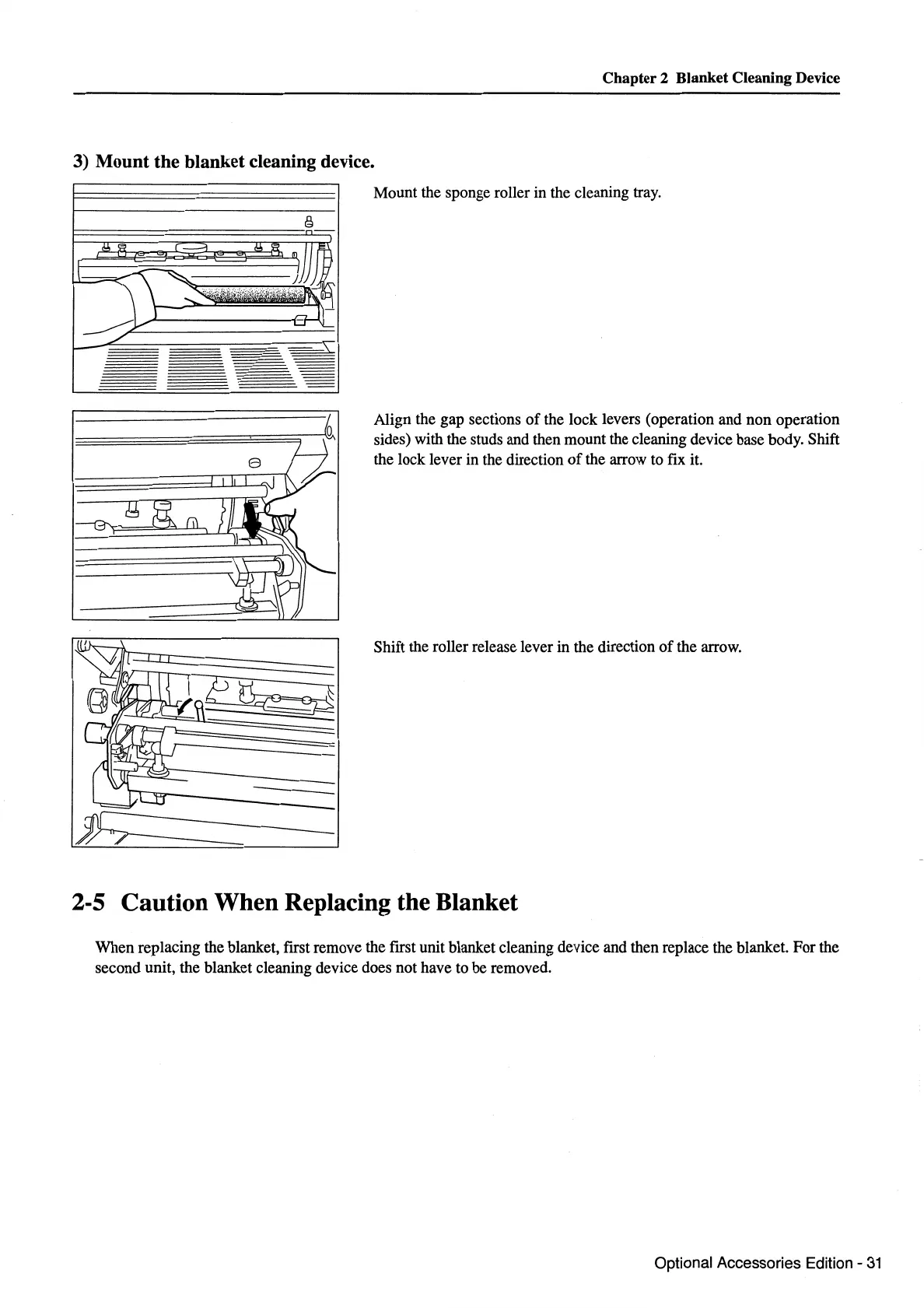

3) Mount the blanket cleaning device.
Mount the sponge roller in the cleaning tray.
Align the gap sections
of
the lock levers (operation and
non
operation
sides) with the studs and then mount the cleaning device base body. Shift
the lock lever in the direction
of
the arrow to fix it.
Shift the roller release lever in the direction
of
the arrow.
2-5 Caution When Replacing the Blanket
When replacing the blanket, first remove the first unit blanket cleaning device and then replace the blanket.
For
the
second unit, the blanket cleaning device does not have to be removed.
Optional Accessories Edition -
31
