Ryobi 3302H - Roller Arrangement

Chapter 1 Press Outline

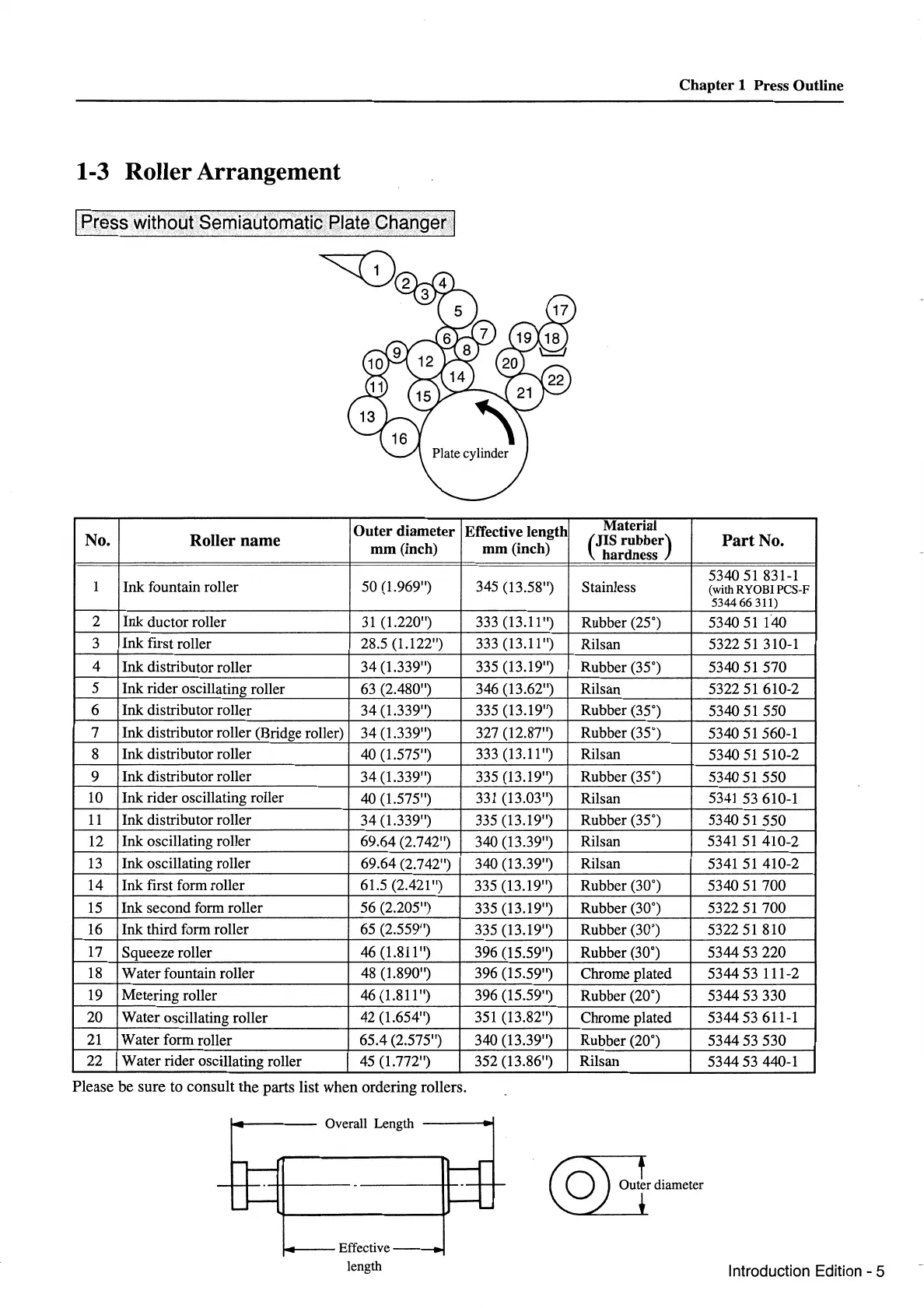

1-3 Roller Arrangement
I Press without Semiautomatic· Plate Changer I
Outer diameter Effective length
Material
No.
Roller name
(JIS rubber)
Part No.
mm (inch)
mm (inch)
hardness
1 Ink fountain roller 50 (1.969") 345 (13.58")
Stainless
5340
51 831-1
(with RYOBI PCS-F
5344 66 311)
2 Ink ductor roller
31 (1.220") 333 (13.11") Rubber (25")
5340
51140
3
Ink first roller 28.5 (1.122") 333 (13.11
")
Rilsan
5322
51 310-1
4 Ink distributor roller
34 (1.339") 335 (13.19") Rubber (35")
5340
51570
5 Ink rider oscillating roller
63 (2.480") 346 (13.62")
Rilsan
5322
51 610-2
6
Ink distributor roller 34 (1.339") 335 (13.19") Rubber (35°)
5340
51 550
7
Ink distributor roller (Bridge roller) 34 (1.339") 327 (12.87")
Rubber (35") 5340
51 560-1
8 Ink distributor roller 40 (1.575")
333 (13.11 ")
Rilsan
5340
51 510-2
9
Ink distributor roller 34 (1.339")
335 (13.19") Rubber (35") 5340
51 550
10 Ink rider oscillating roller
40 (1.575")
331 (13.03")
Rilsan
5341 53 610-1
11 Ink distributor roller 34 (1.339")
335 (13.19")
Rubber (35°)
5340
51 550
12
Ink oscillating roller
69.64 (2.742")
340 (13.39")
Rilsan 5341
51 410-2
13 Ink oscillating roller
69.64 (2.742")
340 (13.39")
Rilsan
5341
51 410-2
14 Ink first form roller
61.5 (2.421
") 335 (13.19") Rubber (30°)
5340
51 700
15 Ink second form roller
56 (2.205") 335 (13.19") Rubber (30°)
5322
51 700
16 Ink third form roller
65 (2.559") 335 (13.19") Rubber (30°)
5322
51 810
17 Squeeze roller 46 (1.811")
396 (15.59")
Rubber (30°)
5344 53 220
18
Water fountain roller 48 (1.890") 396 (15.59")
Chrome plated 5344 53 111-2
19
Metering roller
46 (1.811")
396 (15.59")
Rubber (20°)
5344 53 330
20 Water oscillating roller
42 (1.654")
351 (13.82")
Chrome plated 5344 53 611-1
21 Water form roller 65.4 (2.575")
340 (13.39")
Rubber (20°)
5344 53 530
22 Water rider oscillating roller
45 (1.772") 352 (13.86")
Rilsan 5344 53 440-1
Please
be sure to consult the parts list when ordering rollers.
Overall Length
r-~
--
-
I-
1-·
-
--
,__~
..... ~
1--._
Effective
length
Introduction Edition- 5
