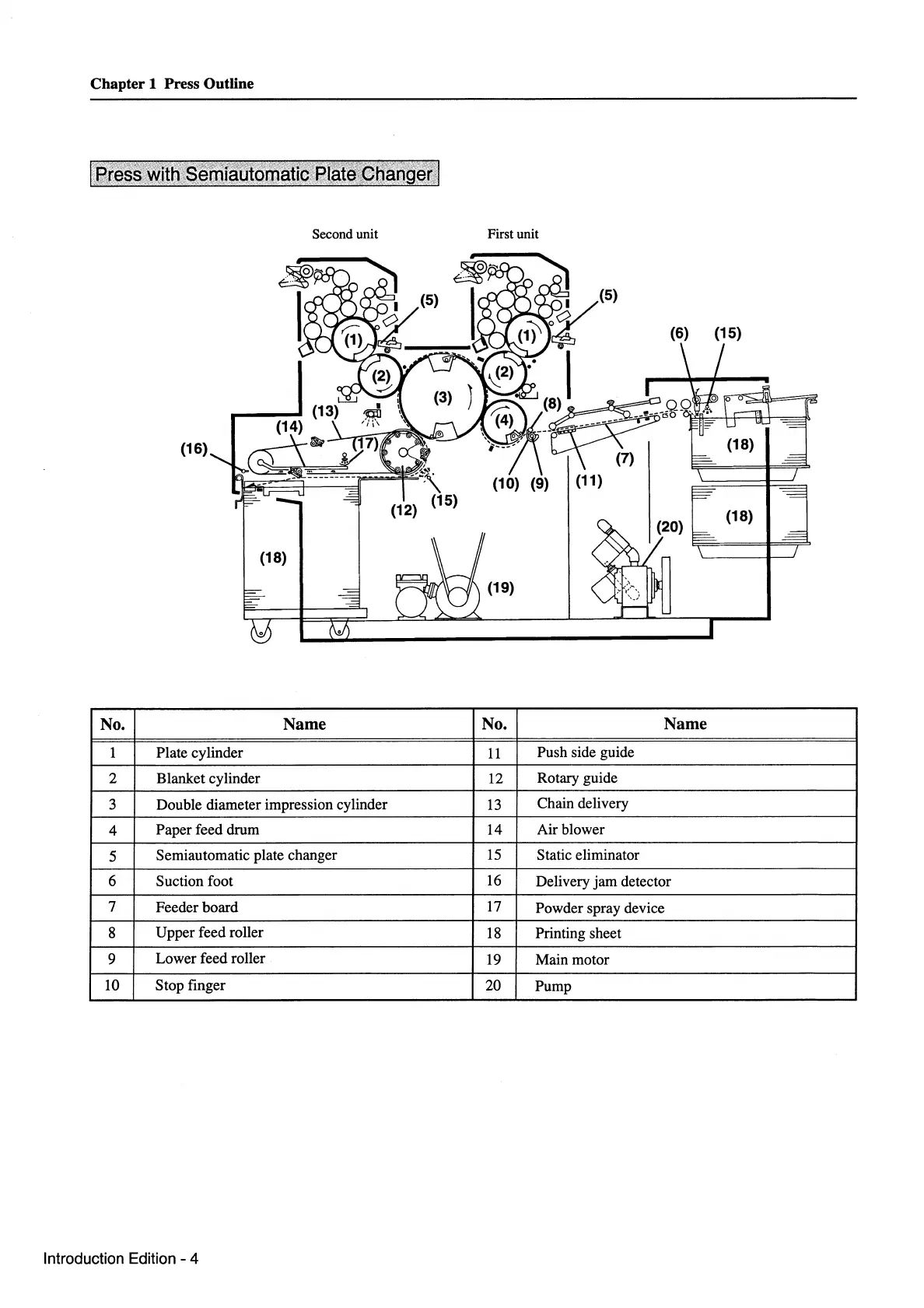

Chapter 1 Press Outline
Second unit First unit
(6) (15)
(16)
No.
Name
No.
Name
1
Plate cylinder
11
Push side guide
2 Blanket cylinder
12
Rotary guide
3 Double diameter impression cylinder 13
Chain delivery
4
Paper feed drum
14
Air blower
5
Semiautomatic plate changer
15 Static eliminator
6 Suction foot
16
Delivery jam detector
7
Feeder board
17
Powder spray device
8
Upper feed roller
18
Printing sheet
9
Lower feed roller
19
Main motor
10
Stop finger
20
Pump
