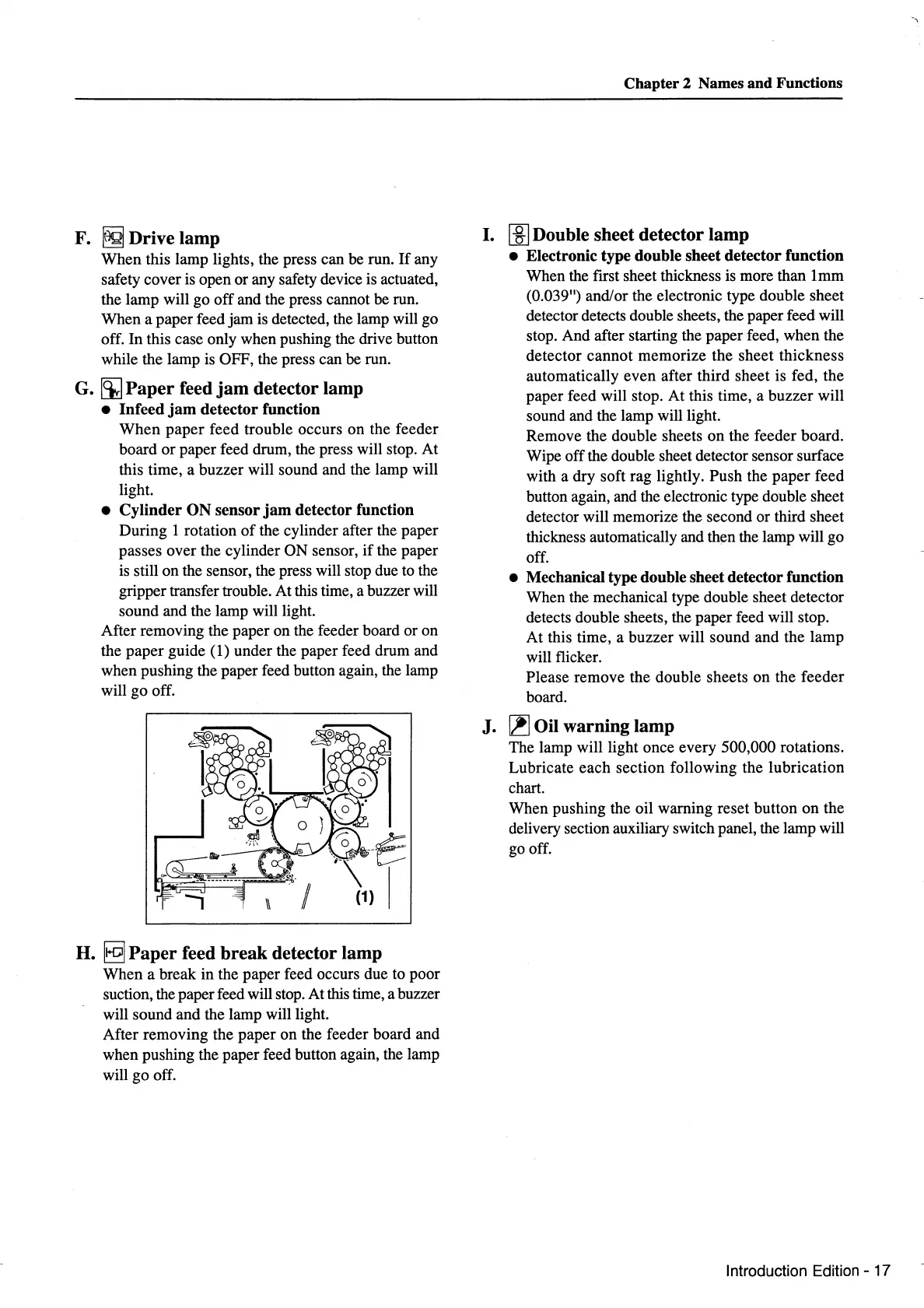

F. ~ Drive lamp
When this lamp lights, the press can be run. If any
safety cover
is open or any safety device is actuated,
the lamp will go
off and the press cannot be run.
When a paper feed jam is detected, the lamp will go
off.
In this case only when pushing the drive button
while the lamp
is OFF, the press can be run.
G. &J Paper feed jam detector lamp
• Infeed jam detector function
When paper feed trouble occurs on the feeder
board or paper feed drum, the press will stop. At
this time, a buzzer will sound and the lamp will
light.
• Cylinder ON sensor jam detector function
During 1 rotation of the cylinder after the paper
passes over the cylinder ON sensor,
if the paper
is still on the sensor, the press will stop due to the
gripper transfer trouble. At this time, a buzzer will
sound and the lamp will light.
After removing the paper on the feeder board or on
the paper guide
(1) under the paper feed drum and
when pushing the paper feed button again, the lamp
will go off.
H. ~Paper feed break detector lamp
When a break in the paper feed occurs due to poor
suction, the paper feed will stop. At this time, a buzzer
will sound and the lamp will light.
After removing the paper on the feeder board and
when pushing the paper feed button again, the lamp
will go off.
Chapter 2 Names and Functions
I. ffi] Double sheet detector lamp
• Electronic type double sheet detector function
When the first sheet thickness is more than lmm
(0.039") and/or the electronic type double sheet
detector detects double sheets, the paper feed will
stop. And after starting the paper feed, when the
detector cannot memorize the sheet thickness
automatically even after third sheet is fed, the
paper feed will stop. At this time, a buzzer will
sound and the lamp will light.
Remove the double sheets on the feeder board.
Wipe off the double sheet detector sensor surface
with a dry soft rag lightly. Push the paper feed
button again, and the electronic type double sheet
detector will memorize the second or third sheet
thickness automatically and then the lamp will go
off.
• Mechanical type double sheet detector function
When the mechanical type double sheet detector
detects double sheets, the paper feed will stop.
At this time, a buzzer will sound and the lamp
will flicker.
Please remove the double sheets on the feeder
board.
J. ~ Oil warning lamp
The lamp will light once every 500,000 rotations.
Lubricate each section following the lubrication
chart.
When pushing the oil warning reset button on the
delivery section auxiliary switch panel, the lamp will
go off.
