Chapter
2 Names
and
Functions

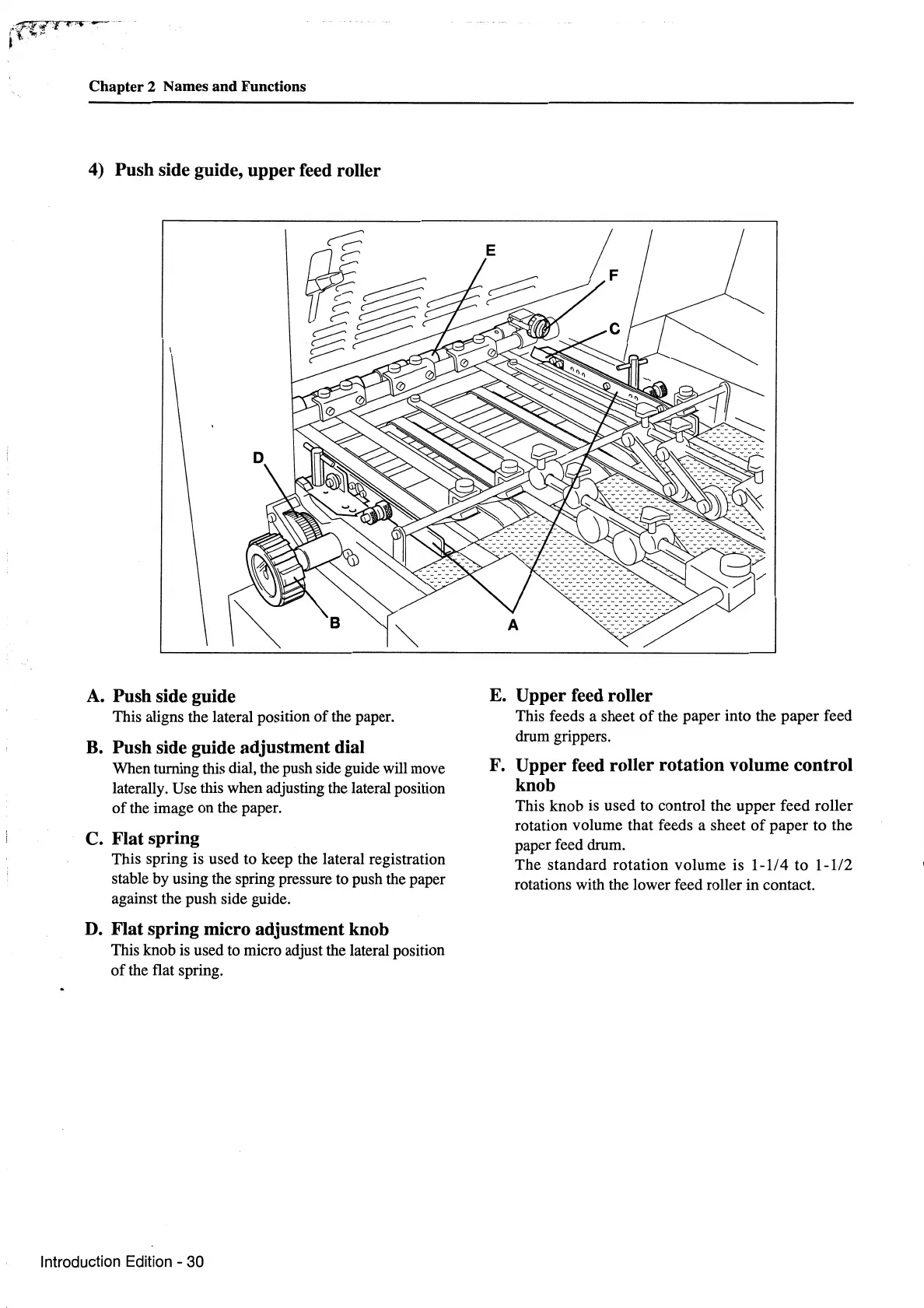

4)
Push side guide,
upper
feed roller
A.
Push side guide
This aligns the lateral position
of
the paper.
B. Push side guide adjustment dial
When turning this dial, the push side guide will move
laterally. Use this when adjusting the lateral position
of
the image on the paper.
C.
Flat
spring
This spring is used to keep the lateral registration
stable by using the spring pressure to push the paper
against the push side guide.
D.
Flat
spring micro adjustment knob
This knob is used to micro adjust the lateral position
of
the flat spring.
Introduction Edition - 30
E. Upper feed roller
This feeds a sheet
of
the paper into the paper feed
drum grippers.
F. Upper feed roller rotation volume control
knob
This knob
is
used to control the upper feed roller
rotation volume that feeds a sheet
of
paper to the
paper feed drum.
The standard rotation volume is 1-114 to 1-1/2
rotations with the lower feed roller in contact.
