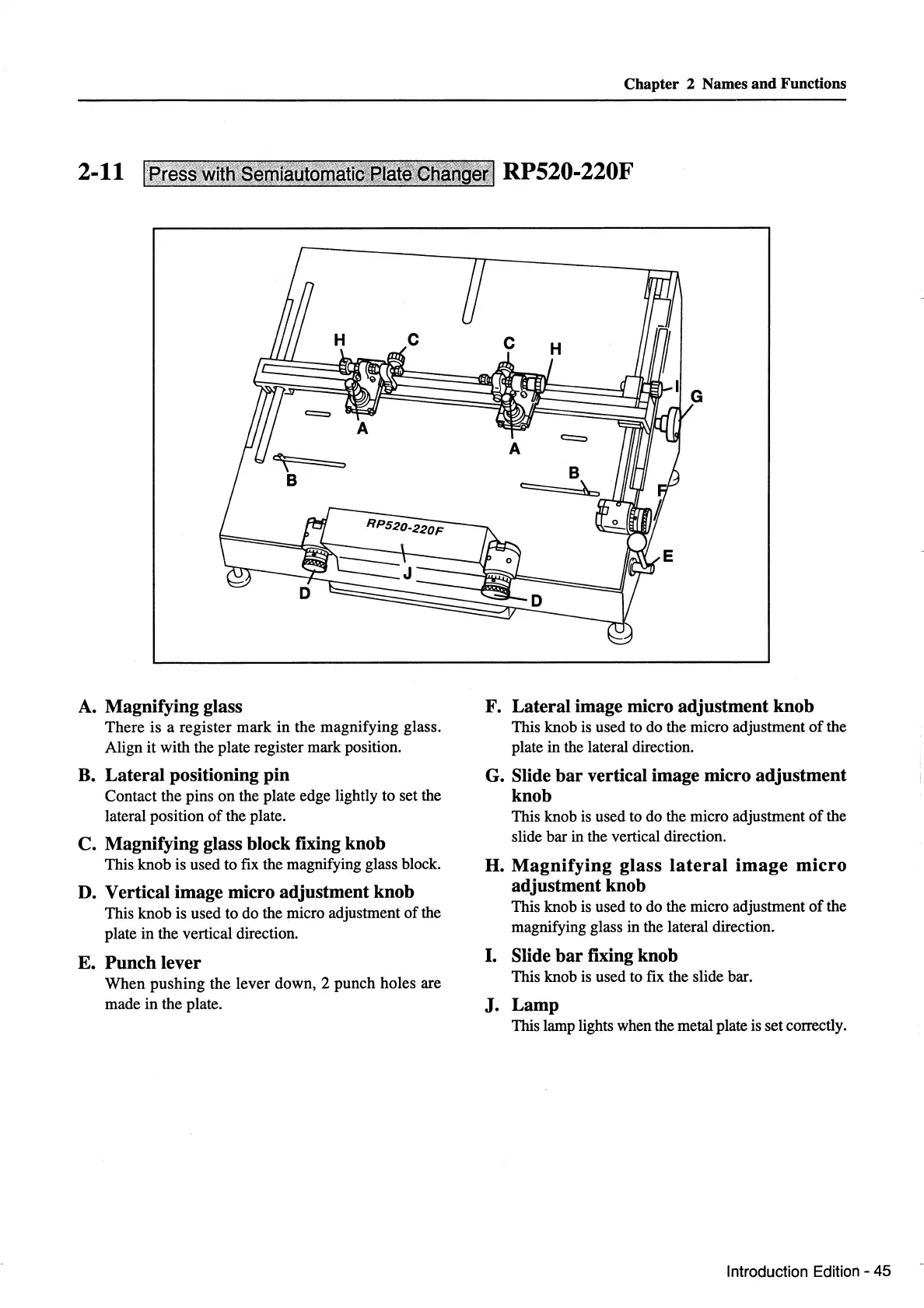

A.
Magnifying glass
There
is a register
mark
in the magnifying glass.
Align it with the plate register mark position.
B. Lateral positioning pin
Contact the pins on the plate edge lightly to set the
lateral position
of
the plate.
C. Magnifying glass block
fiXing
knob
This knob is used to fix the magnifying glass block.
D. Vertical image micro adjustment knob
This knob is used to do the micro adjustment
of
the
plate in the vertical direction.
E. Punch lever
When
pushing the lever down, 2 punch holes are
made in the plate.
Chapter
2 Names
and
Functions
F. Lateral image micro adjustment knob
This knob is used to do the micro adjustment
of
the
plate in the lateral direction.
G. Slide
bar
vertical image micro adjustment
knob
This knob is used to do the micro adjustment
of
the
slide bar in the vertical direction.
H.
Magnifying
glass
lateral
micro
adjustment knob
This knob is used to do the micro adjustment
of
the
magnifying glass in the lateral direction.
I. Slide
bar
fixing knob
This knob is used to fix the slide bar.
J. Lamp
This lamp lights when the metal plate is set correctly.
Introduction Edition- 45
