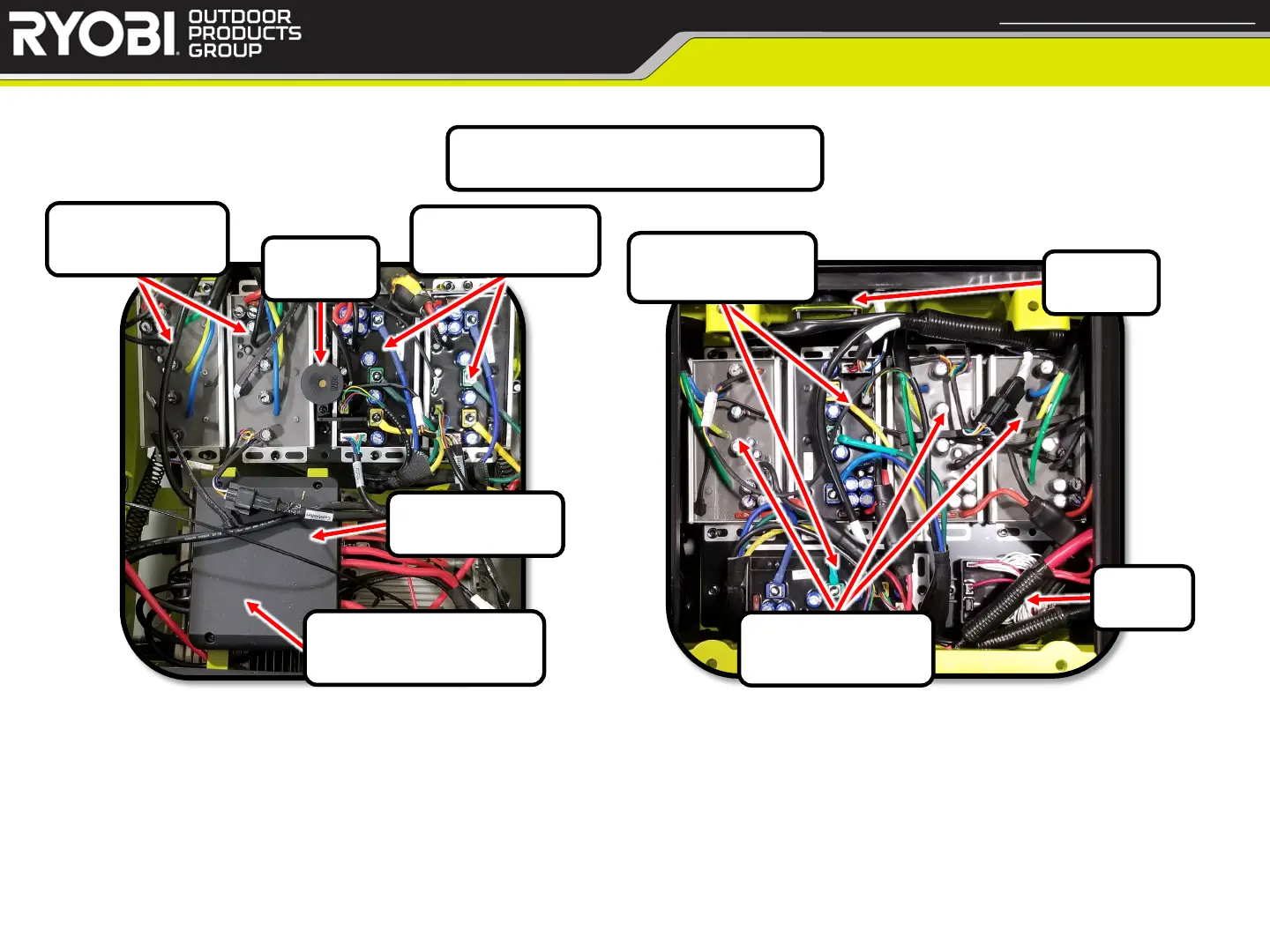

Controller Locations
< Return to Table of Contents
RYRM8021 42” ZTR Mower
RYRM8034 54” ZTR Mower
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE
TIC
RYRM8010 30” ZTR Mower
Beeper
MOWER FRONT
Drive Motor
Controllers (2)
Deck Motor
Controllers* (3)
Junction Box
Beeper
Drive Motor
Controllers (2)
Deck Motor
Controllers (2)
Battery Boosters
under Junction Box
*NOTE
The RYRM8021 has (2) Deck Motor Controllers, not (3)
