• Testing Blade Power (PTO) Switch
• Testing Steps:
1. Disconnect main power from mower
2. Set DMM to Resistance
3. Test for continuity at the points indicated
a. With the switch pulled out (closed), you should get very low resistance or Continuity
b. With the switch pushed down (open), you should get very high resistance or no Continuity
NOTE: Make sure spade lugs are secure. They should be locked in place and should not
come loose if when pulling on the wires.
< Return to Table of Contents
Blade Power (PTO) Switch
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE

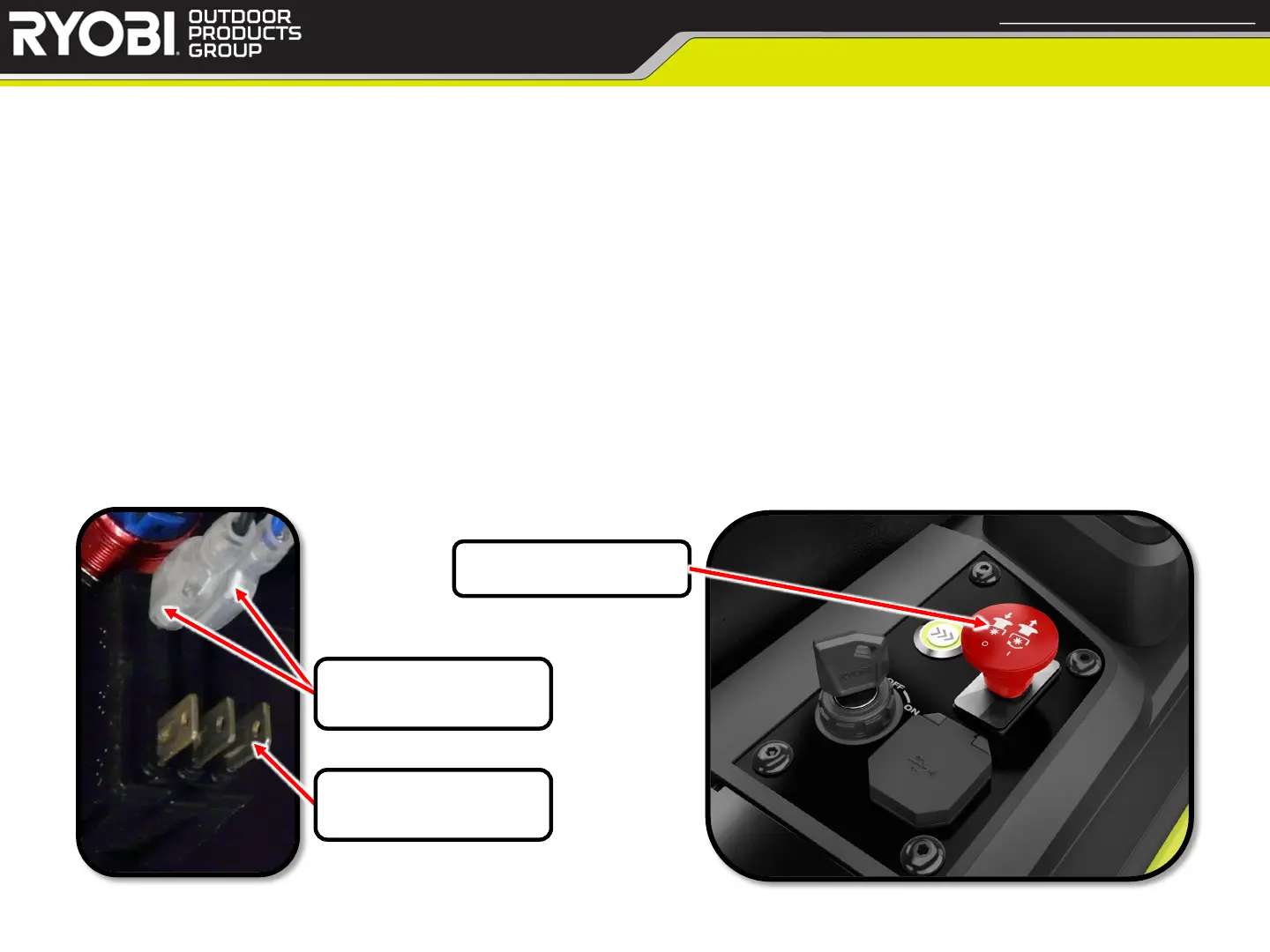

Blade Power Switch
Testing Points
NOTE: Terminals
are not connected
Blade Power Switch
To Next Page
