• Testing Seat Switch
• Testing Steps:
1. Power mower off
2. Set DMM to Resistance
3. Disconnect Seat Switch connectors
4. Test for continuity across input terminals
a. With the switch pushed down, you should get very low resistance or Continuity
b. With the switch released, you should get very high resistance or no Continuity
35
< Return to Table of Contents

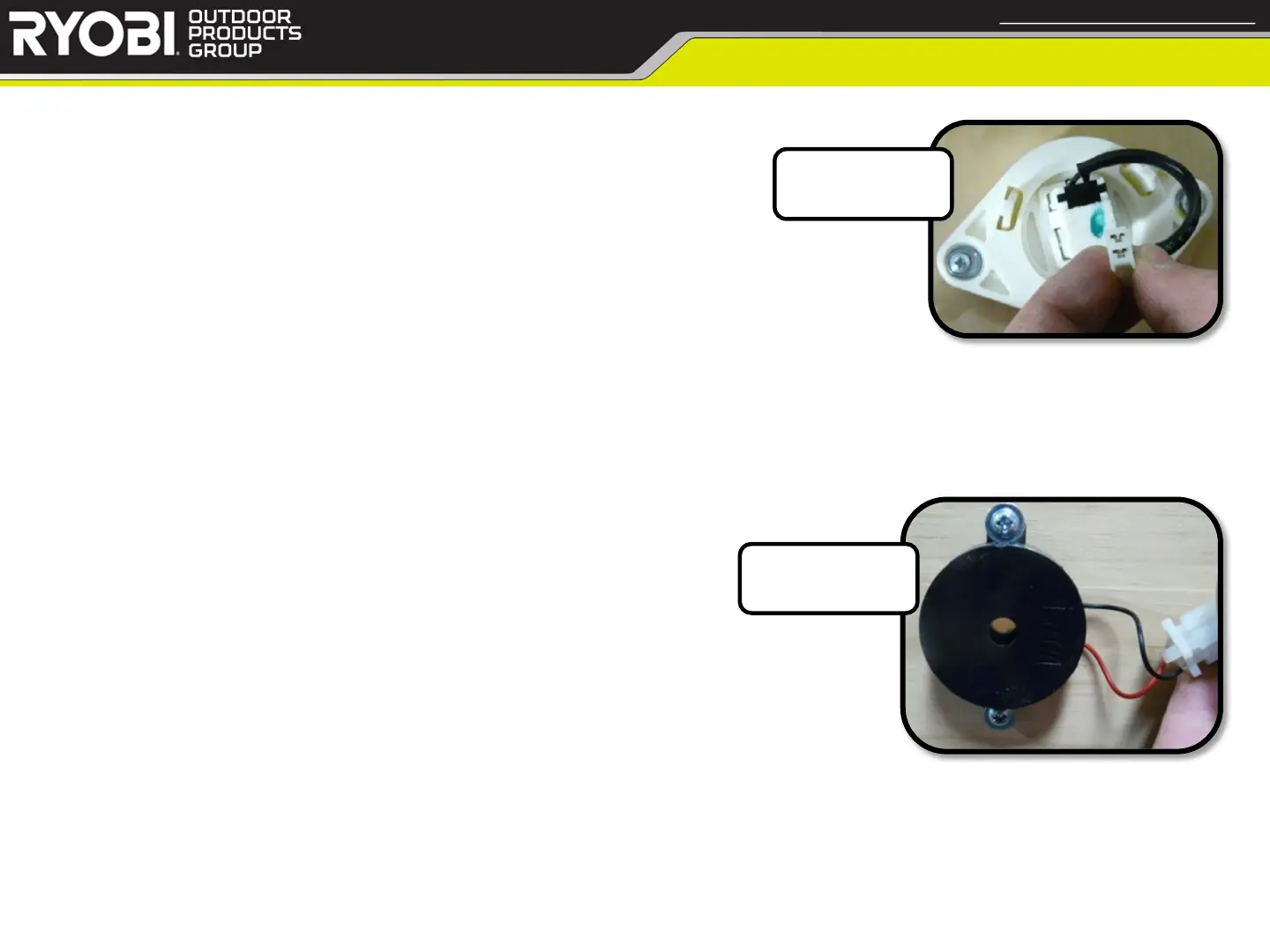

Seat Switch / Beeper
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE
Seat Switch
• Testing Beeper
• Testing Steps: (on mower)
1. Power mower on
2. Remove yourself from the seat
3. Beeper should activate within 1 minute
• Testing Steps: (at harness)
1. Set DMM to DC Volts
2. Remove yourself from the seat
3. Place probes in harness socket
4. Measurement should alternate between 0 and 5v-12v
Beeper
