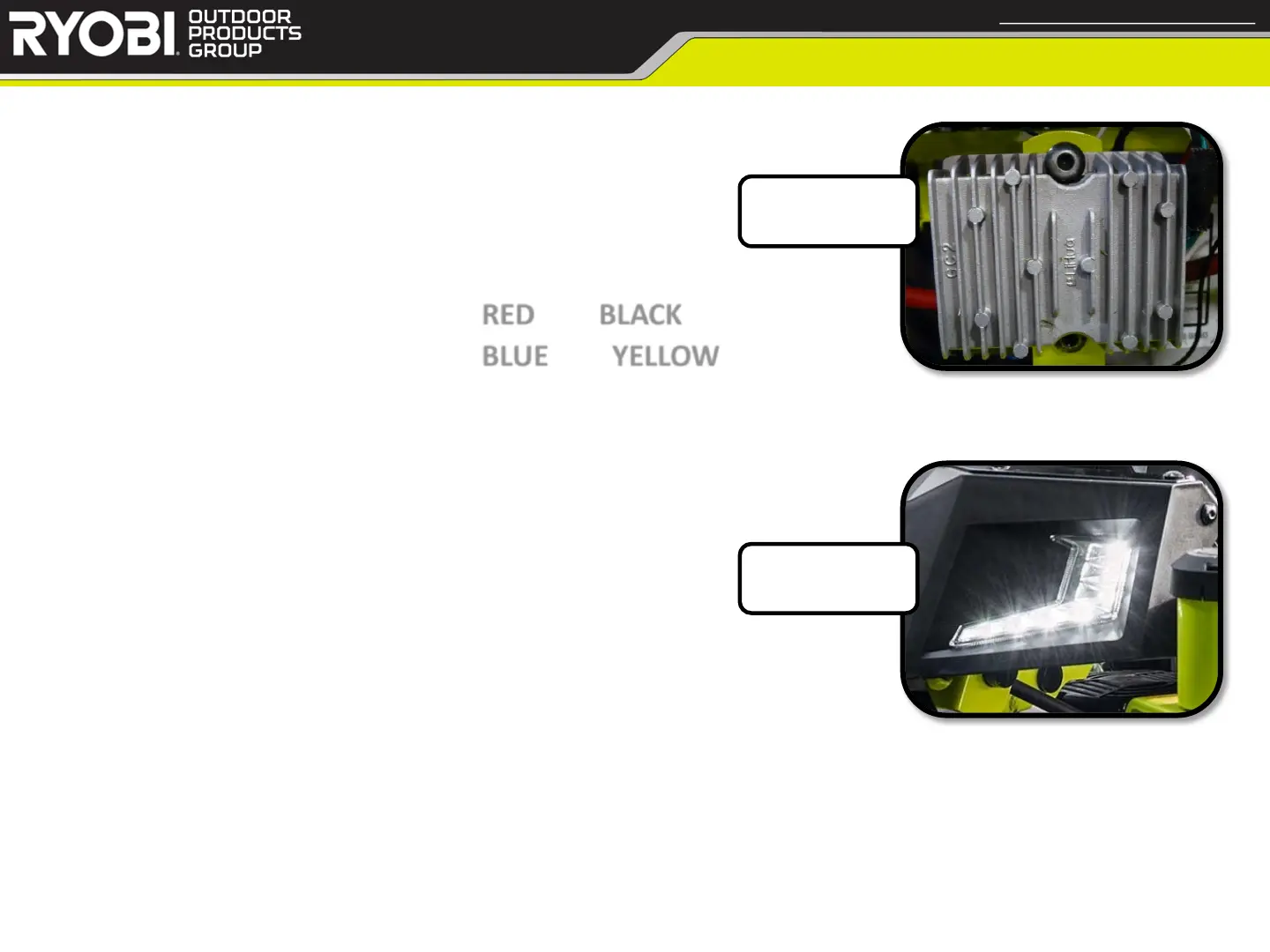

• Testing DC-DC Convertor
• Testing Steps:
1. Power mower on
2. Set DMM to DC Volts
3. Check for ~80v between the RED and BLACK wires
4. Check for ~12v between the BLUE and YELLOW wires
30
< Return to Table of Contents
DC-DC Convertor / Headlights
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE
DC-DC
Convertor
• Testing Headlight Assembly
• Testing Steps:
1. Power mower on
2. Turn on Headlights
3. Set DMM to DC Volts
4. Check for ~12v at the harness
Headlight
Assembly
To Next Page
