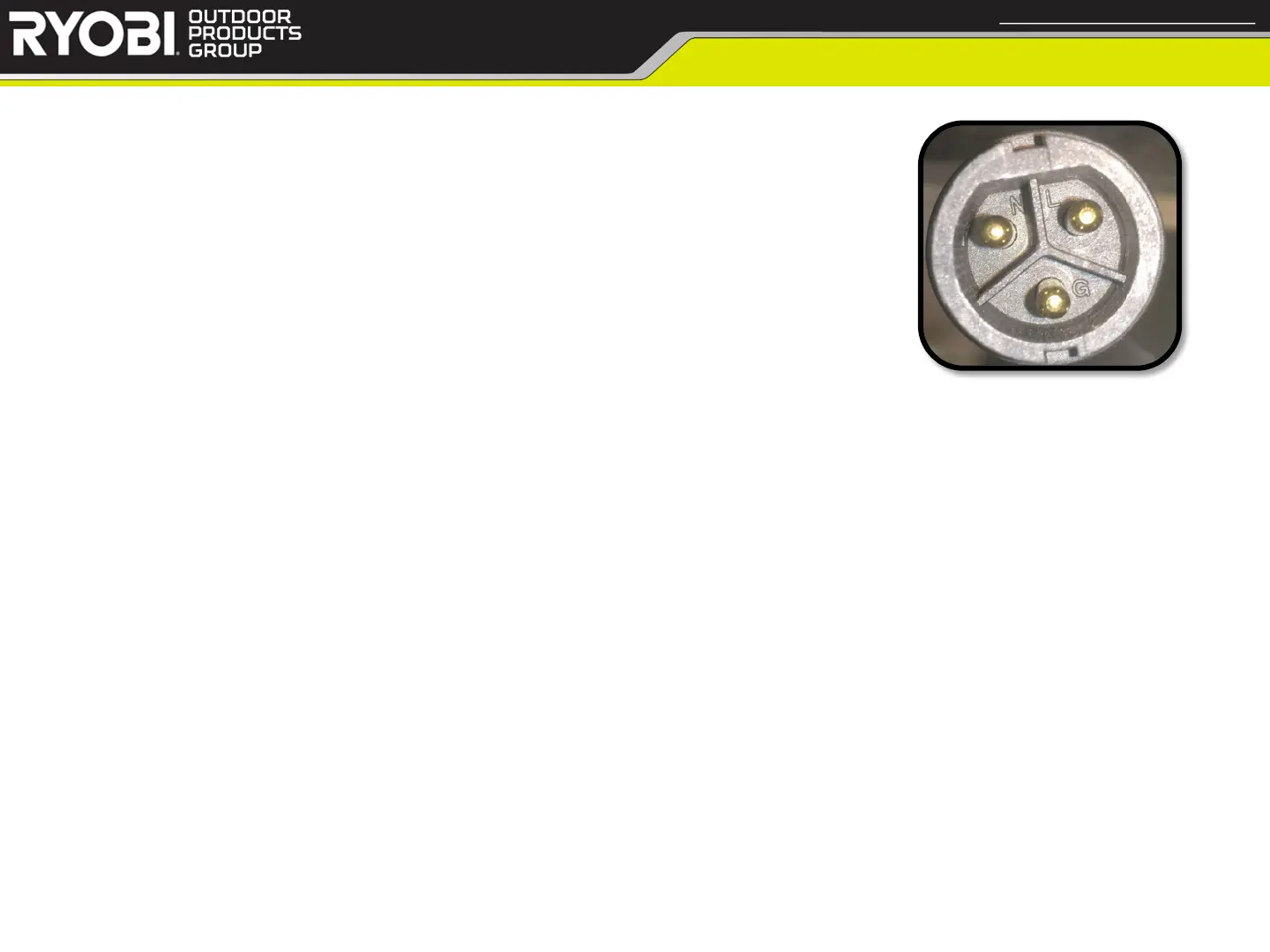

• Testing Deck Motors
• Testing Steps:
1. Set DMM to Resistance
2. Test for continuity between any two pins
3. Test for continuity between other pins
4. Measurements should be nearly identical
a. Typical resistance should be ~0.1 Ohm
NOTE: Ignore the N, L, and G labels on the connector. These are NOT for
neutral, line, and ground. Never connect to AC Power!
