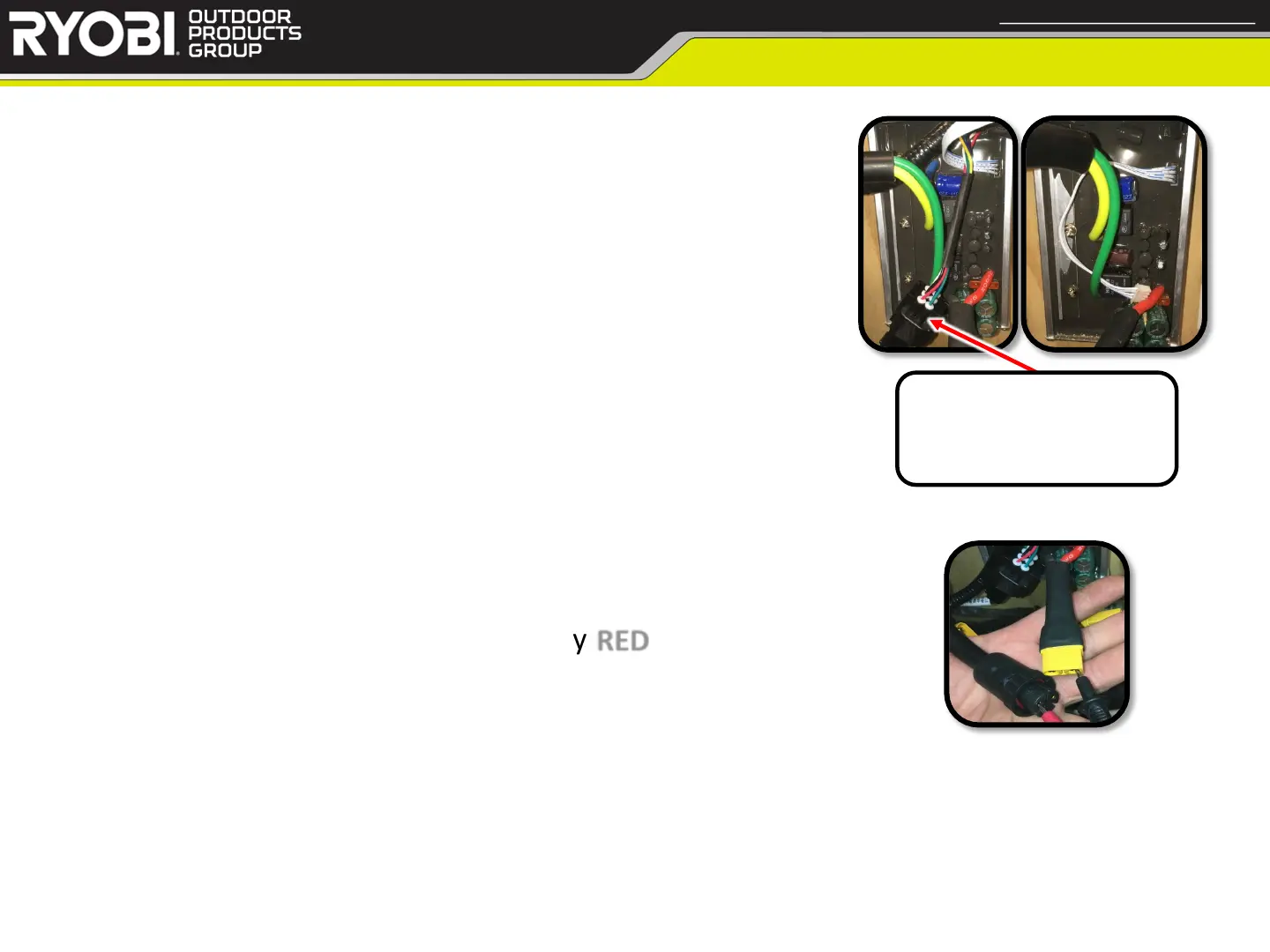

• Testing Deck Motor Controller
• Testing Steps: (resistance of output)
1. Set DMM to Resistance
2. Test for continuity between any two terminals
3. Test for continuity between other terminals
4. Measurements should be nearly identical
a. Typical resistance should be between 18K-20M Ohms
• Testing Steps: (power and ground to output)
1. Set DMM to Diode
2. Connect black lead of DMM to heavy RED wire (ground)
3. Sequentially connect the red probe to each pin
a. Measurement should be ~0.48v for each pin
38
< Return to Table of Contents
Deck Motor Controllers
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE
Primary Deck Motor
Controller has the large
square connector.
