• Testing Bagger Boost Switch
• Testing Steps:
1. Disconnect all batteries and charger from mower
2. Set DMM to Resistance
3. Test for continuity across input terminals
a. With the switch pushed down (open), you should get very high resistance or no Continuity
b. With the switch released (closed), you should get very low resistance or Continuity
< Return to Table of Contents
Bagger Boost Switch
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE

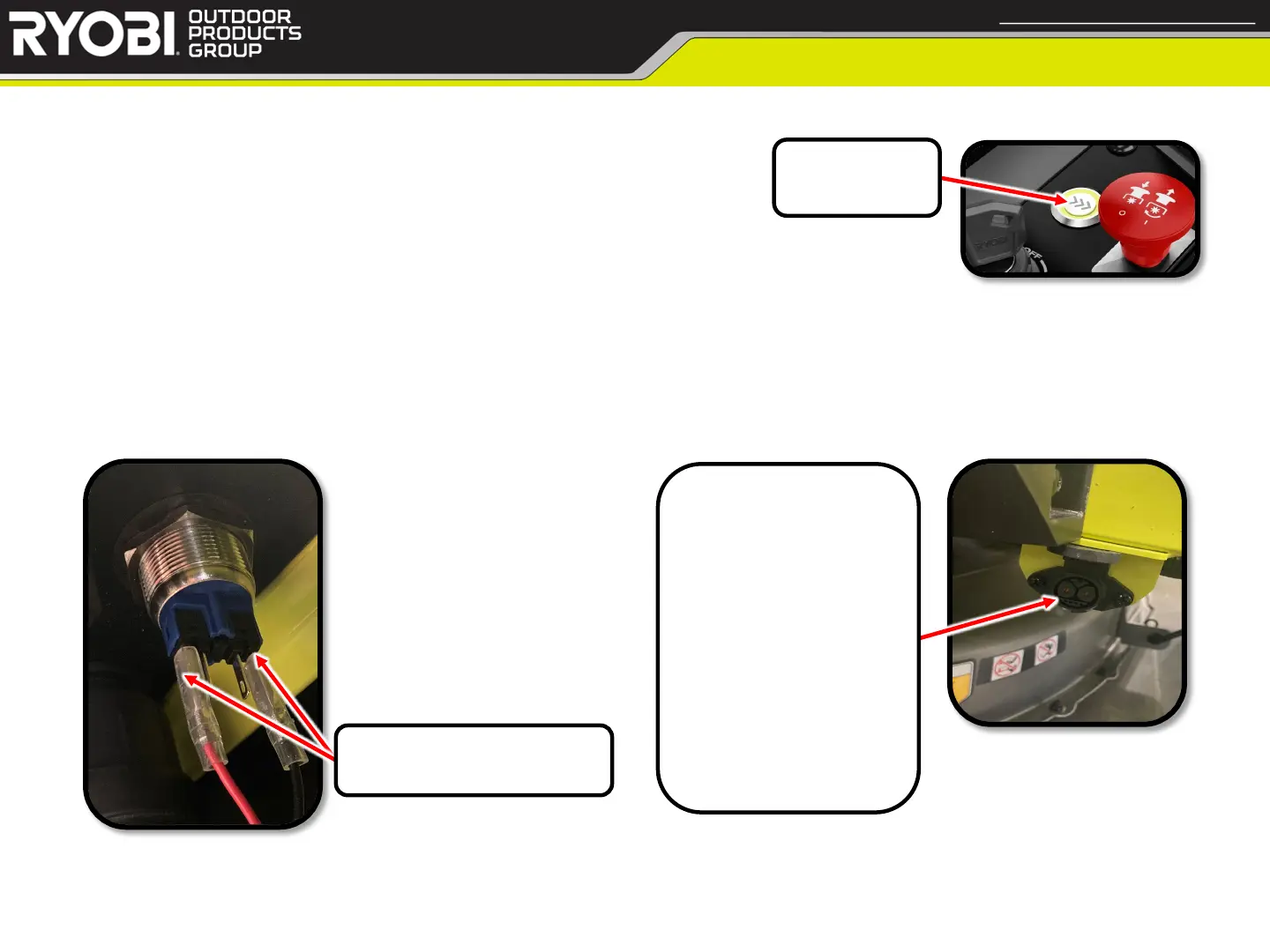

Bagger Boost Switch
terminals under caps
Bagger
Boost Switch
Bagger Boost Port
Bagger Boost should run
for a max of 30 sec after
activation, or until the
user shuts down the
blower. After the
second press, boost will
start locking out for up
to 60 sec to avoid
overheating. If not
activated for 10 min,
the lockout will reset.
