Brushless motors operate quite differently than brushed motors with which
you may be used to working. (e.g., a starter motor).
< Return to Table of Contents
Brushless Motors Overview
Brushles s motors can be recognized by 3 wires.
These 3 wires require a controller to operate
them and to “fire” these 3 phases in a precise
fashion, like spark plugs firing a 3-cylinder gas
motor.
Applying a voltage directly to these
phases will cause damage.
A brushed motor, like the one pictured to the right,
can be quickly tested by applying voltage to the
two terminals.

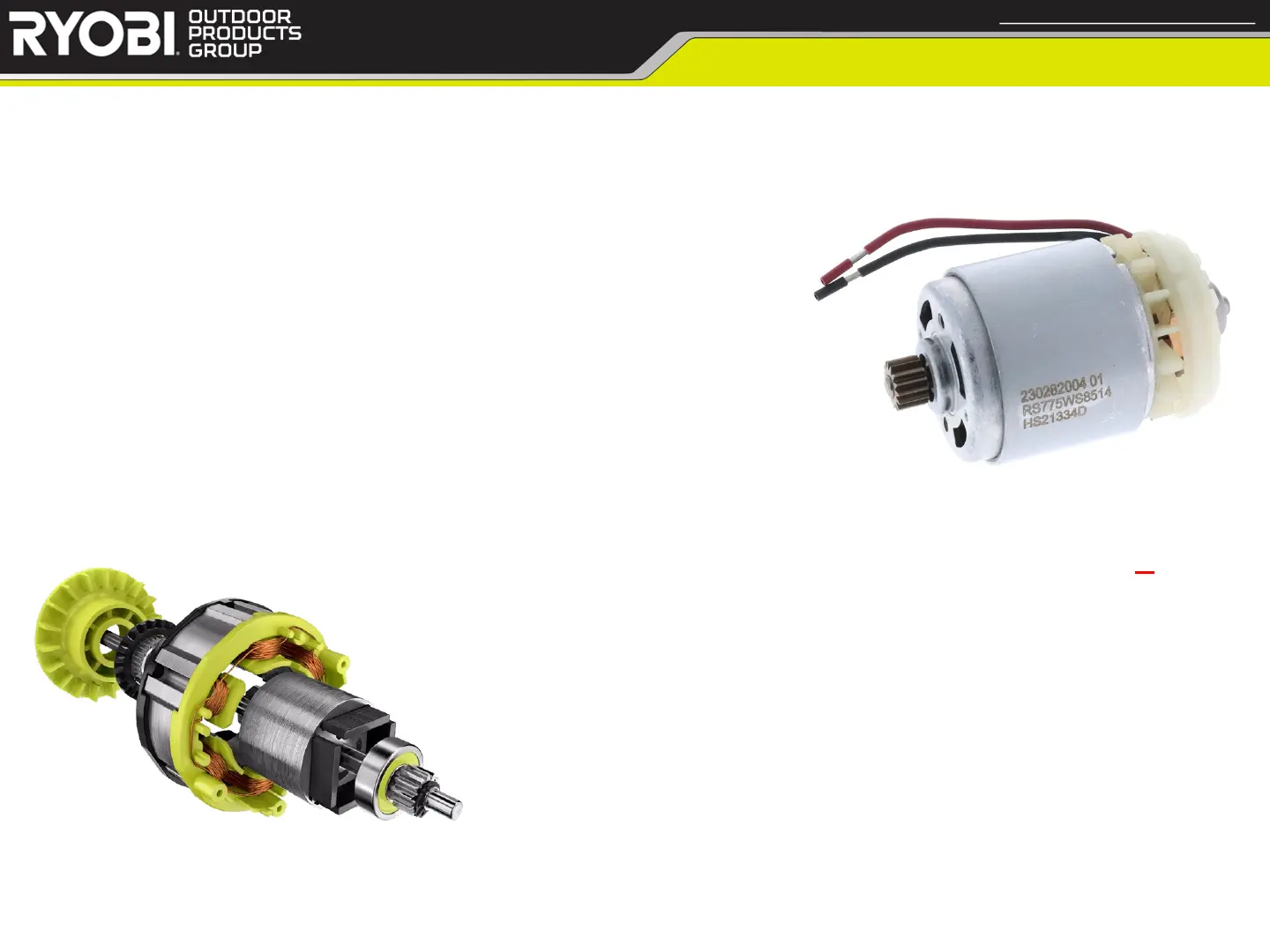

Brushless Motor Example
(Not actual motor in ZTRs)
Brushed Motor Example
