Saab TankRadar
®
Pro Mechanical Installation
2-15
Edition 2. Ref. No: 306010E

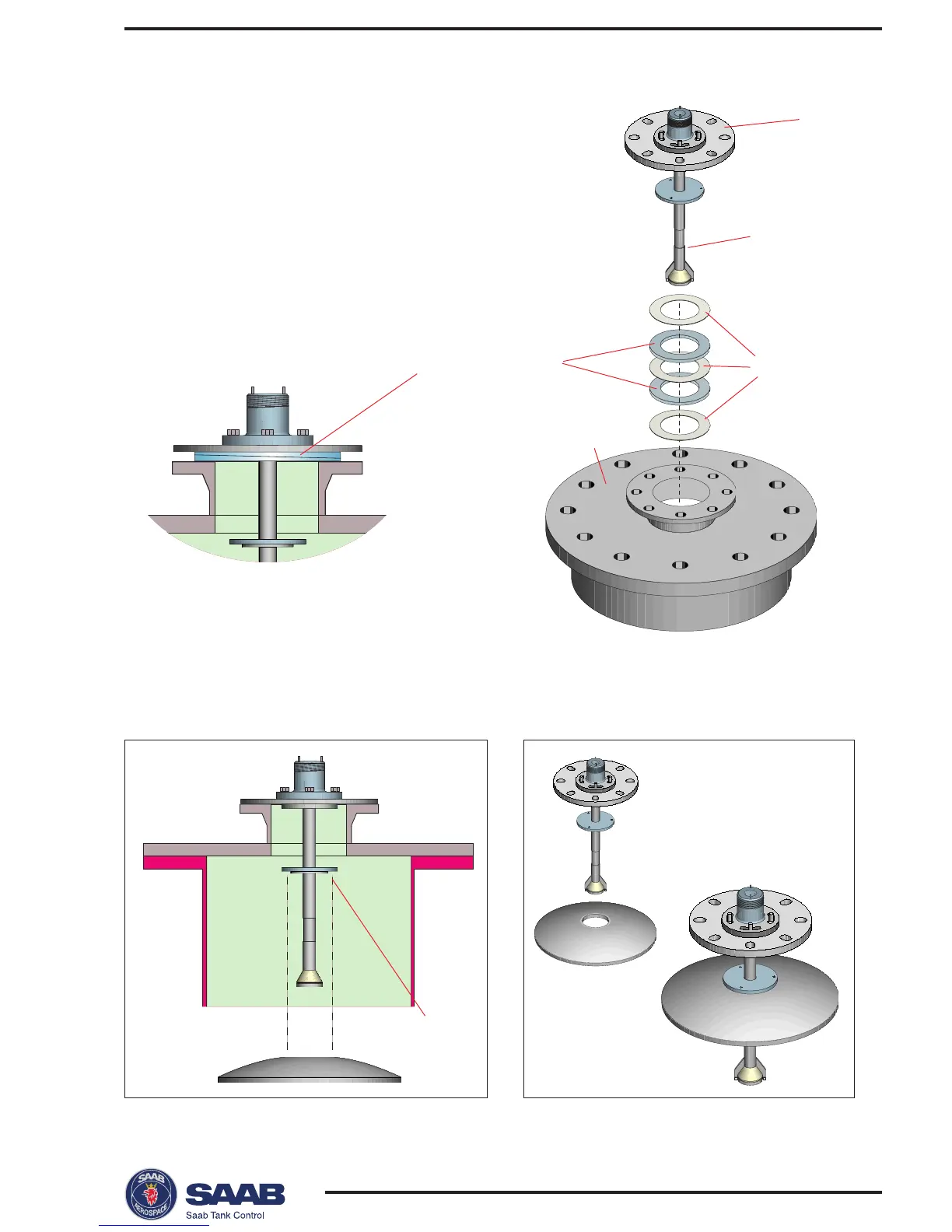

Flange
Antenna
feeder
Gaskets
Angular rings
Nozzle
Lower
flange
Parabola
3. Mount the antenna feeder to the tank nozzle.
If necessary, use angular rings (inclination
device) to align the antenna within
±0.5
o
. The rings can be used if the tank
nozzle flange is horizontal within ±4
o
.
4. Mount the parabola onto the lower
flange on the antenna feeder.
