Saab TankRadar
®
ProMechanical Installation
2-16
Edition 2. Ref. No: 306010E

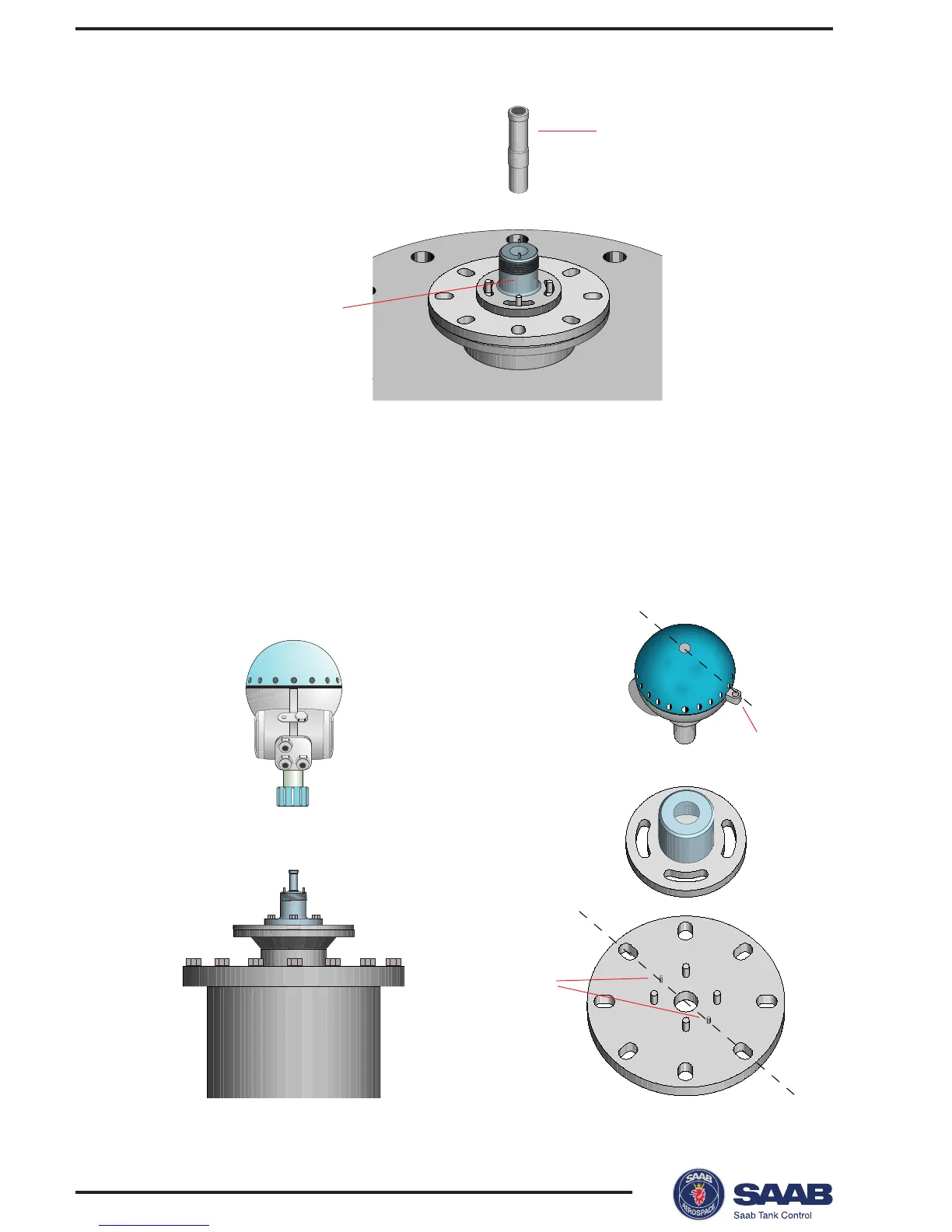

TCP
tube
Guide pins
Cover Locking
Transmitter head
TRL2 adapter
5. Mount the TCP tube into the TRL2
adapter.
6. Mount the transmitter head.
Rotate the head and the TRL2 adapter to align the cover locking at the
back of the transmitter head with the guide pins.
Note! It is very important that the transmitter head is properly aligned to
the guide pins. Improper alignment may cause poor measurement
performance.
